Presentation of Xenity Engine

Xenity Engine is a crossplatform game engine based on GameObjects and Components for PlayStation Portable, PsVita, PS3 and Windows. Made in C++ 17.
Xenity engine uses Visual Studio Code to edit your scripts.

GitHub page here!

It's pink but you can change the color!

Supported platforms:

✔️ Supported
🚧 Work In Progress

Features:

• Basic 2D Rendering (Not great for 2D games)
• 3D Rendering
• 2D Audio
• 3D Audio
• Skyboxes
• Scenes
• Animations
• 3D Physics
• 2D Physics
• C++ Hot Reloading
• C++ Plugins (Started but not finished)

Please make frequent backups of your project, you are not safe from a project corruption!

You can see all limitations here.

If you want to improve the engine, here is the TODO list.

Contact:

Discord: fewnity

Email: fewnity@gmail.com

LinkedIn: https://www.linkedin.com/in/gregory-machefer-grimaud/

Limitations

Here is a list of every limitations of the game engine. These can be limitations for the user or for the game engine developpers.

For users

Editor UI

Multi selection is not supported.

In game UI

There is no gamepad support for UI menus.

Lighting

Lighting does not work great on PsVita and PS3. A shader variant system could fix this.

• Performances are not great,
• Lights on PS3 are limited by 1 on each type.

Objects with a big scale will cause lags if they are moving (Problem caused the light world partitionner).

Audio

Audio works "fine" with 44100Hz but on PS3 you need to use 48000Hz audio or the audio will sound weird.

Rendering

The engine is mono thread, so performances are not great with lot of objects.

There is not split screen support.

2D

2D performances are not great.

Networking

Network sockets get data only every frame. (Limitation easy to fix).

There is no way to know if a socket has been closed or not.

Reflection

The reflection does not support many types.

Physics

There is no layer system. So no system to disable collisions between some colliders.

There is no 2D physics system.

For Xenity maintainers

Rendering

The graphics API interface is OpenGL like, so it's harder to add an new API that is different from OpenGL.

On PSP there is a graphical bug and I'm not able to fix it, looks like it visible when disabling vsync but not sure.

Reflection

The reflection is a little bit hard to maintain.

Other

The overuse of "friend class" is a problem in the engine in general. It's used to hide internal functions to the user.

Installation

To be able to code and compile your game on Windows and to play in the editor,

You have to:

• Install Visual Studio 2022,
• Install Visual Studio Code,
• Set Compiler path in the Engine Settings menu (Window -> Engine Settings) if your Visual Studio installation/version is different.


To be able to compile your game on game consoles (PlayStation Portable, PlayStation Vita, PlayStation 3), follow this part: Game console support

Game console support

Docker Desktop is needed to compile PSP, PS3 and PsVita games.
The main reason is most SDKs are only working on Linux. Docker is a simple way to install Linux and every SDK and needed tools to compile your game even if your system is running Windows.

Virtualization shoud be enabled in the bios. Click here to see how to check if virtualization is enabled on my system.

The SDKs alone take around 8GB, and Docker will also install a Linux image (this won't affect your Windows system). Please make sure you have at least 20-30GB of free disk space available.

If you are already using Docker, Xenity Engine won't affect your existing images/containers.

Docker Setup

To be able to compile on game consoles you have to:

• Download and install Docker Desktop,
  If docker ask you between Hyper-V and WSL, choose WSL.
• If you have never used WSL or if Docker asks you do to this, open a CMD and run the wsl --update command. Docker requires a minimum version of WSL.
• Finish the docker install in Xenity. For this, go to the Docker Configuration menu (Window -> Docker Configuration), and follow the instructions.

The process can take several minutes especially if you have a slow computer or a slow internet connection. (The editor will freeze, do not close it).

If anything goes wrong during the installation, check in Docker Desktop if an Image called xenity_x_x_x (x_x_x is a version).
If there is an image, delete it and retry the installation from the editor.

Build and run

A build and run option is supported for the PSP to launch the game on an emulator after the build.

You have to:

• Install the PPSSPP Emulator.

• Set PPSSPP location in the Engine Settings menu if your installation location is different.


Game project samples

3 samples of smalls games made with Xenity Engine are available to download on GitHub.
Looking at the code is a great way to understand how the engine works.
They all work on game consoles too.

• Dungeon platformer, it's a platformer in a dungeon. Use of physics, lighting, UI and audio.

• Nano Machines, it's a tiny car controller. Use of physics and particles.

• Cooking game, it's an Overcooked like. Use of physics, audio and particles.


Manual

Here is a manual to learn more about the engine and how to use it.

To learn more about menus and their uses, see Editor UI.

To learn how to use the engine, see Usage.

To check which asset formats to use, see Compatible asset formats.

The editor UI

Here is a presentation of every menu of the editor.
Click on link to get more details.

The project manager window displays all the projects made with Xenity Engine.
The hierarchy window displays all GameObjects of the scene.
The inspector window displays all Components a the selected GameObject.
The file explorer window displays all files of your project.
The game Tab window displays the view of the game's camera.
The scene Tab window displays the view to edit your scene.
The console window displays the logs of the editor and of your game.
The profiler window displays infos about performances.
The project settings window displays the settings of your project.
The engine settings window displays the settings of the Xenity Engine.
The lighting settings window displays the scene's lighting settings.
The docker configuration window displays steps to finish the Docker installation.
The build settings window allow to build your game on various platforms.

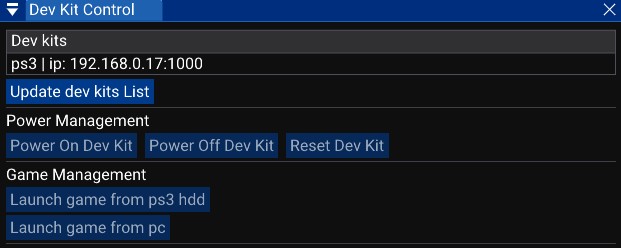

The dev kit control window allow to control a development kit.

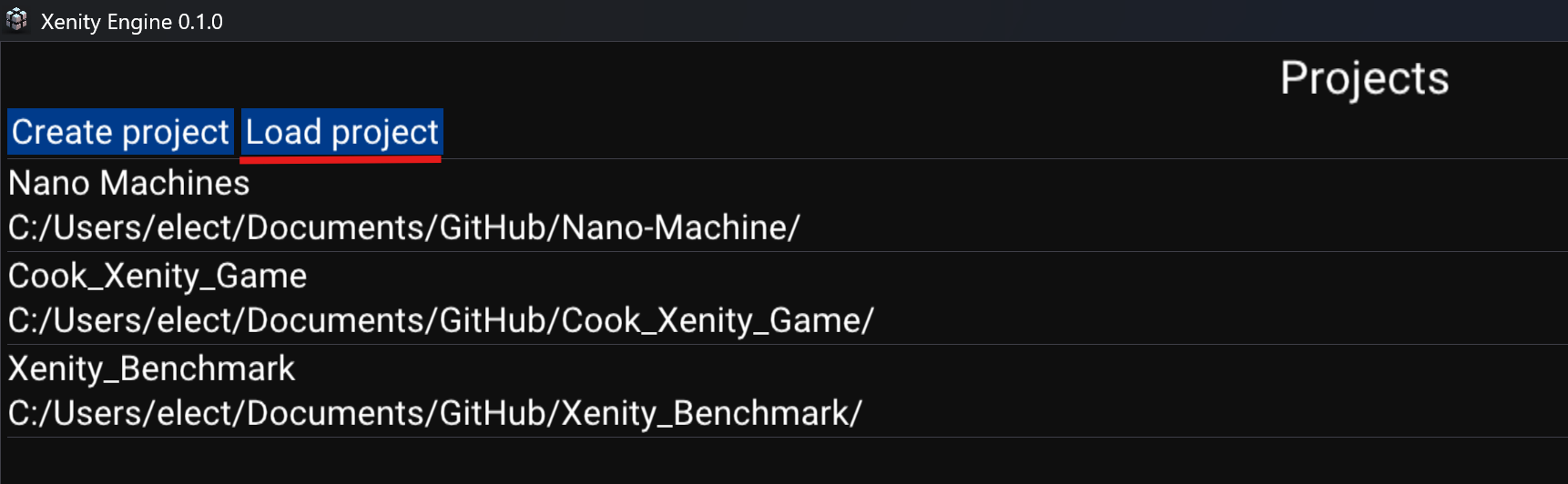

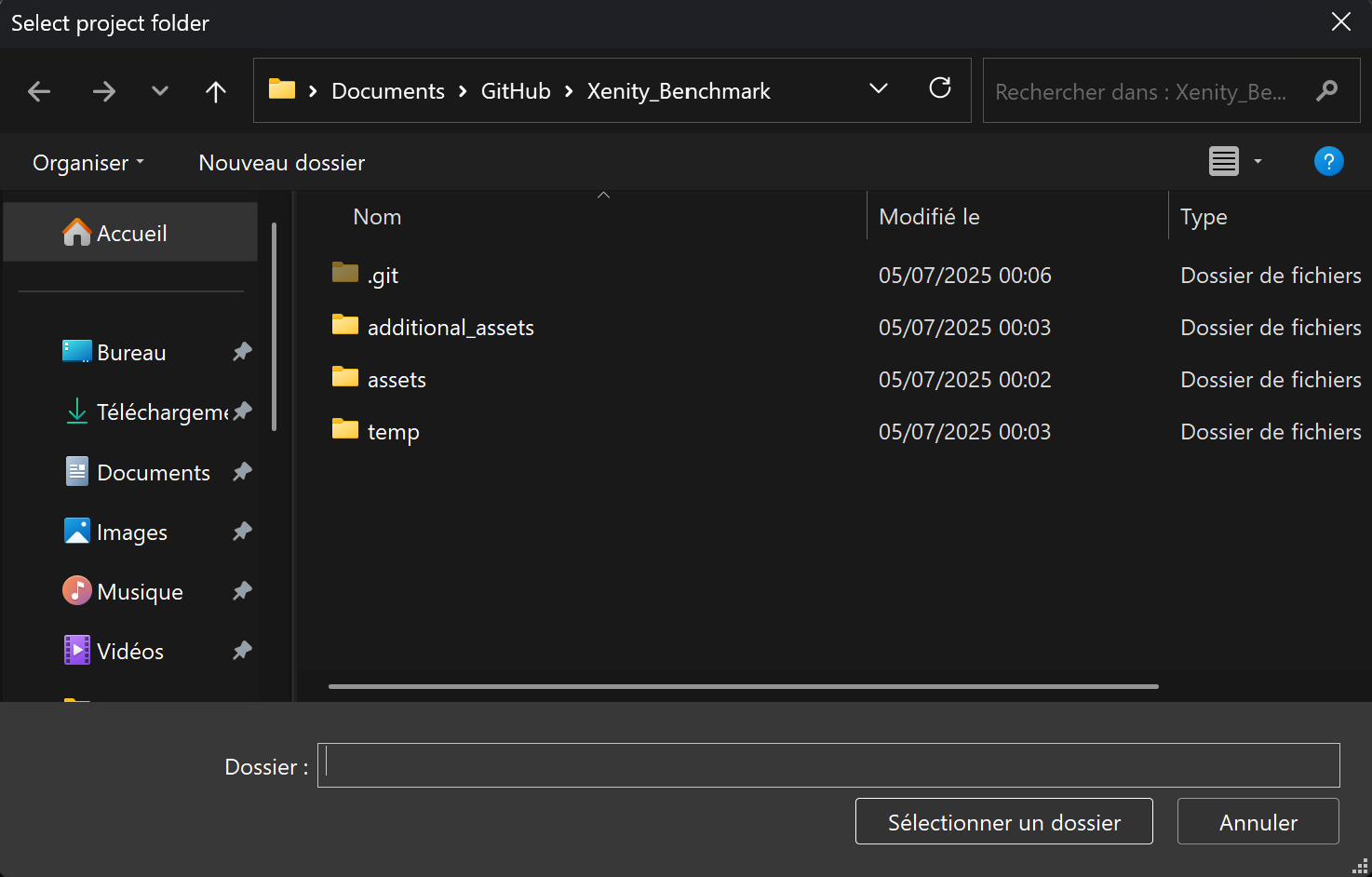

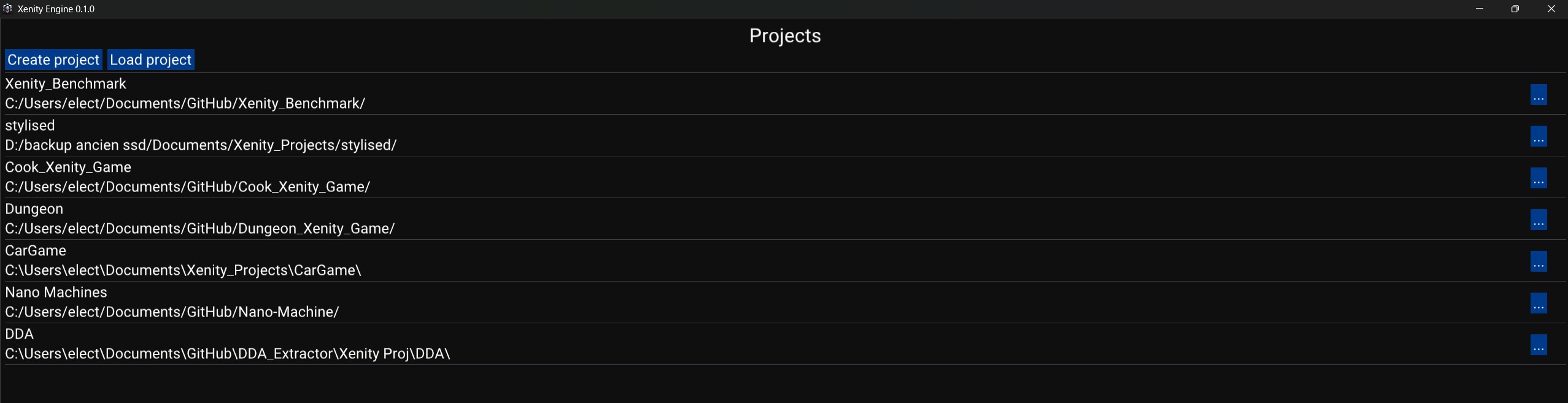

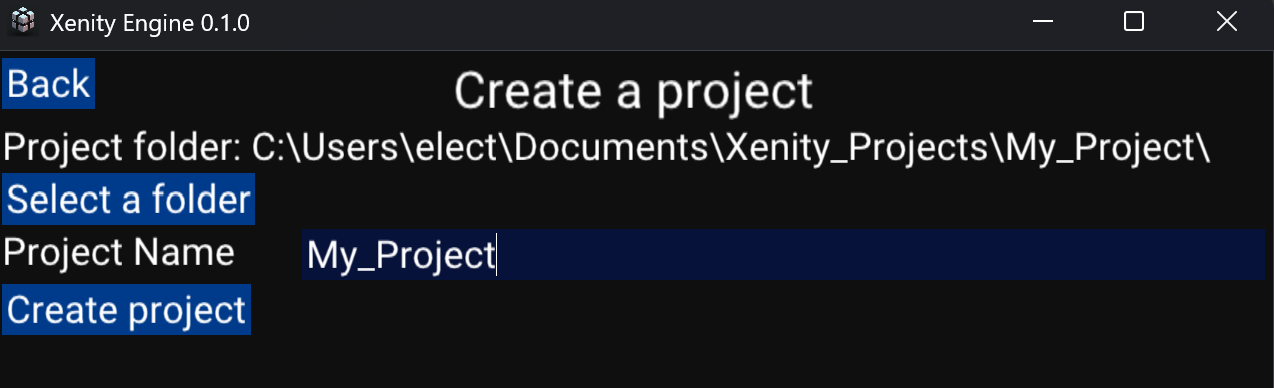

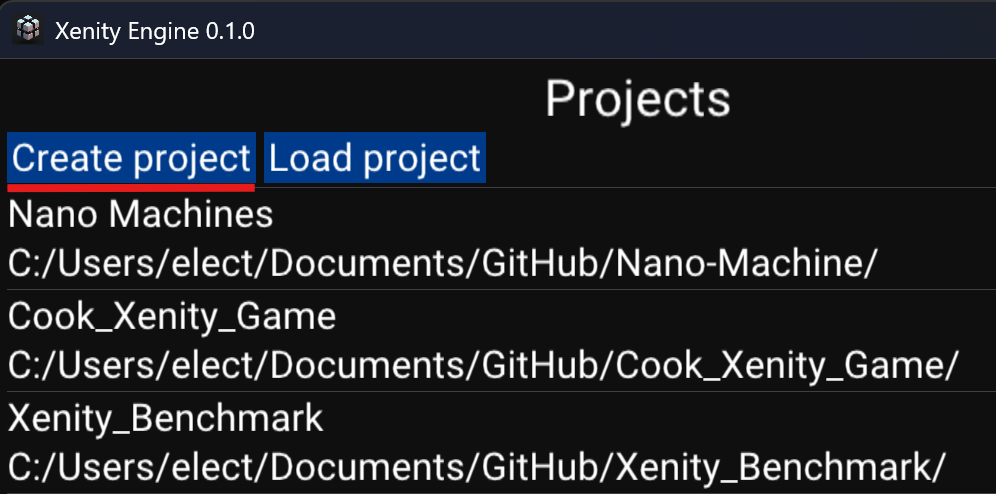

Project Manager

The project manager window shows the list of projects made with Xenity.
You can create new project, delete them or simply open them.

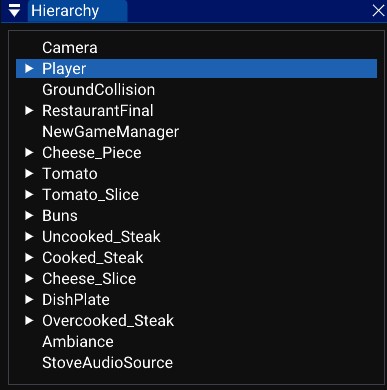

The hierarchy

The hierarchy window show all GameObjects if your scene.

Interactions:

• You can click on a GameObject to select it and use it in the inspector or in the scene tab.
• You can right click on a GameObject to manage it (delete, create a new GameObject...).

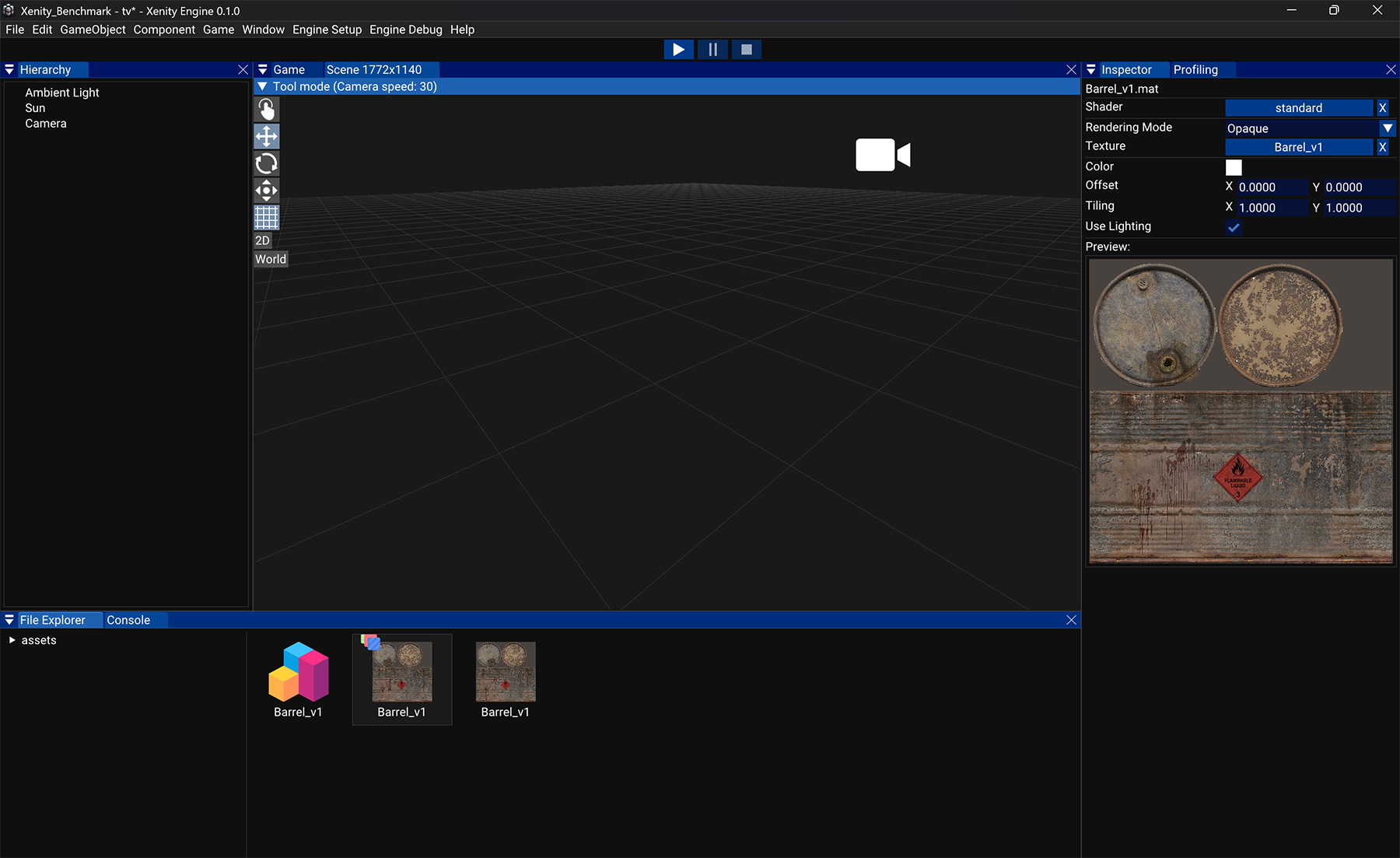

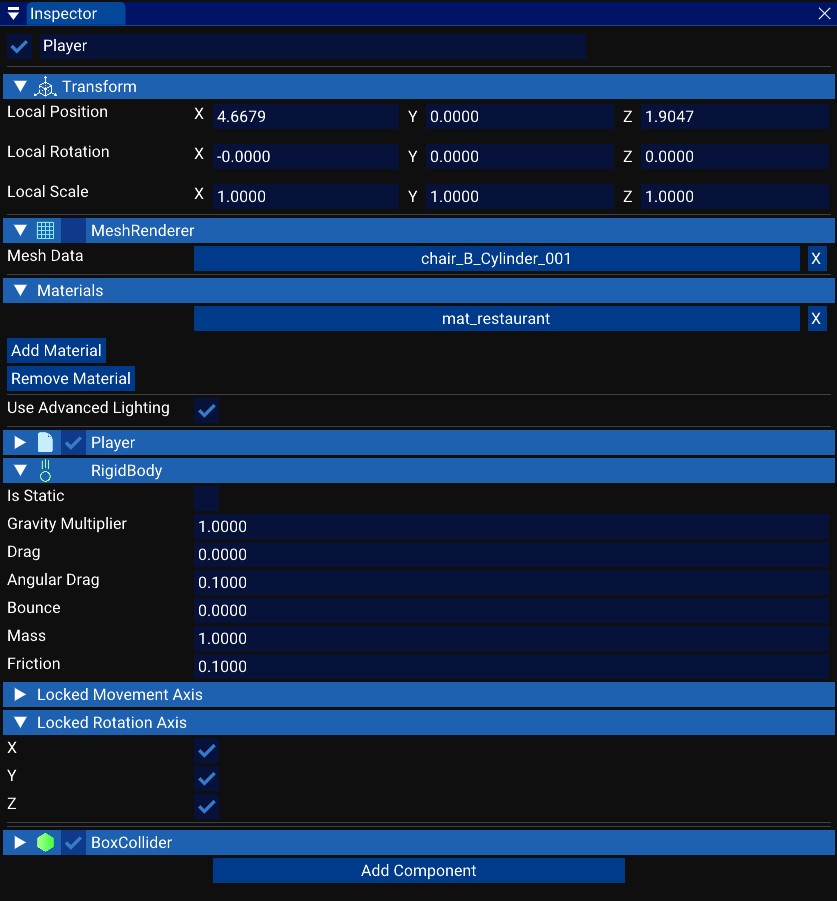

The inspector

The inspector window lists all components of a GameObject.

You have the name of the GameObject and a check box to enable or disable it.
Then the transform of the GameObject that contains the information about the position, rotation and scale.

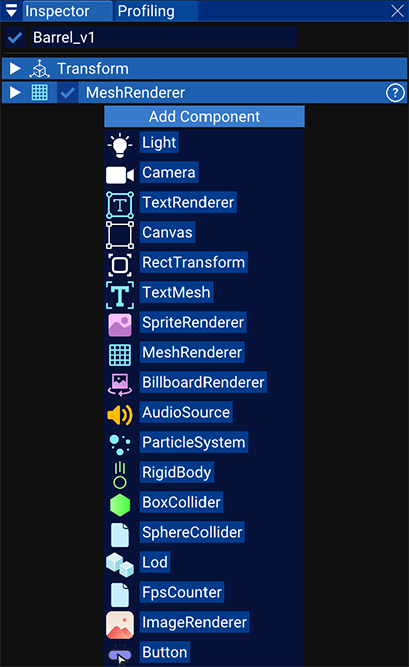

And finally you have the list of components, you can add new, edit or delete them.
Most components have a check box to enable or disable them.

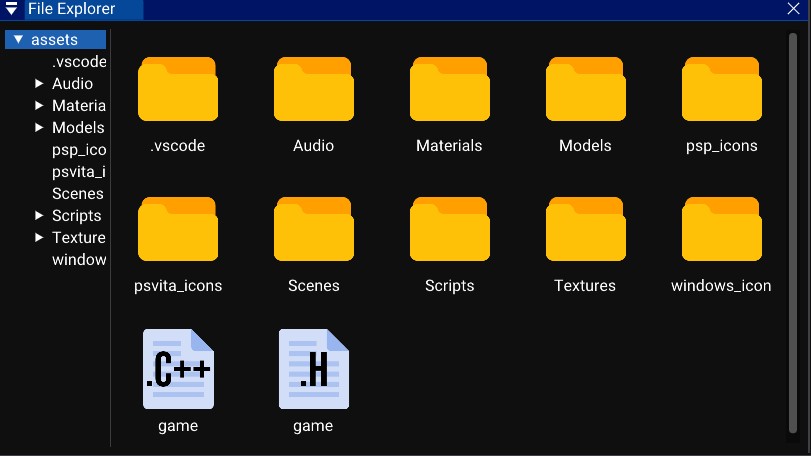

The file explorer

Ther file explorer Window show all the files of your opened project.

Manage files

• You can double click on folders to open them or use the folder list on the left.
• To move a files you can drag it into a folder.

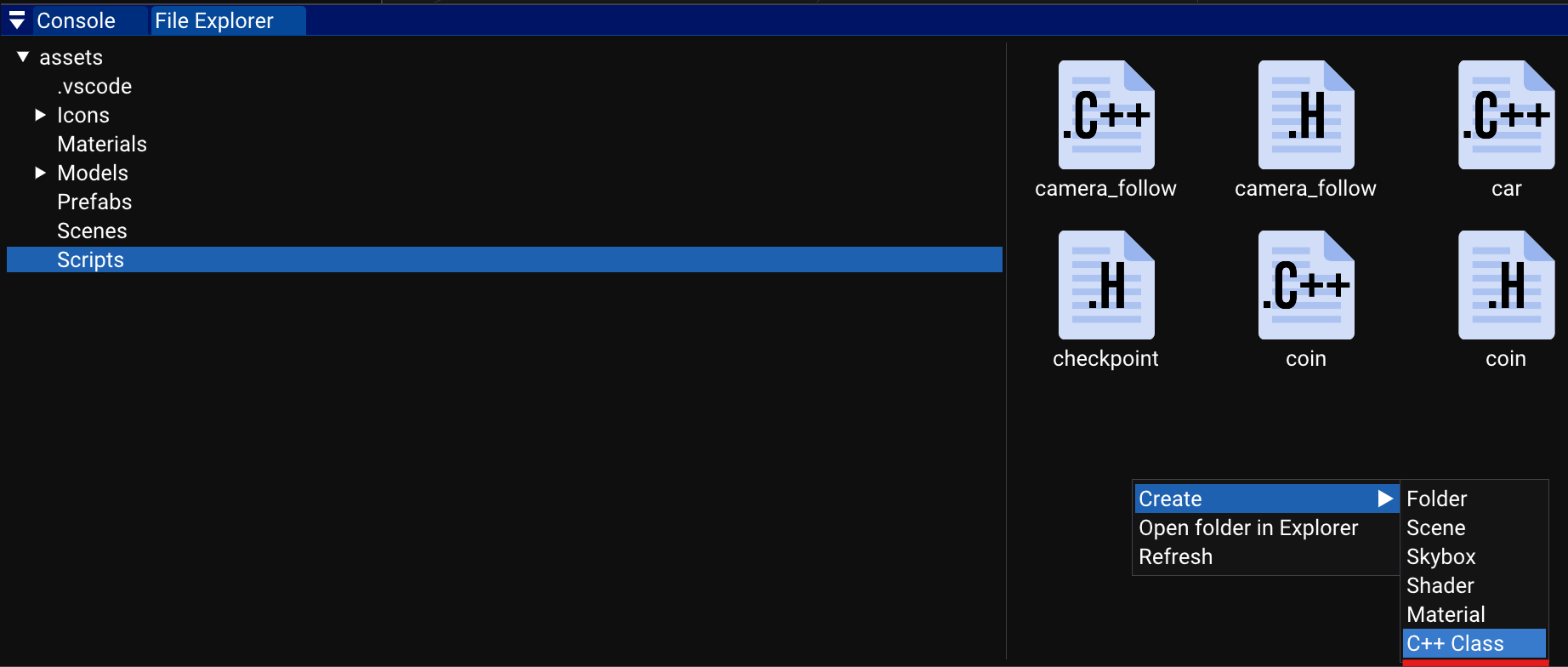

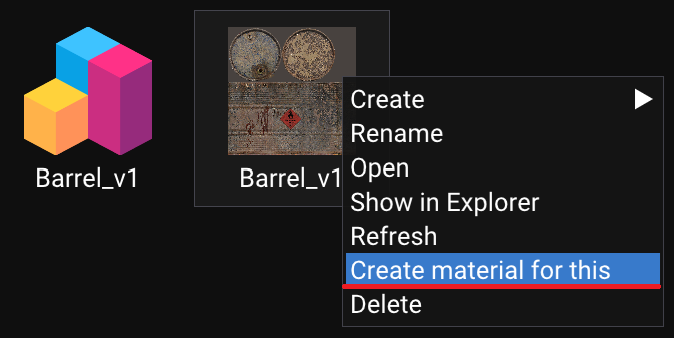

• To manage a file, you can right click on it and you will see a list of command (delete, rename...).

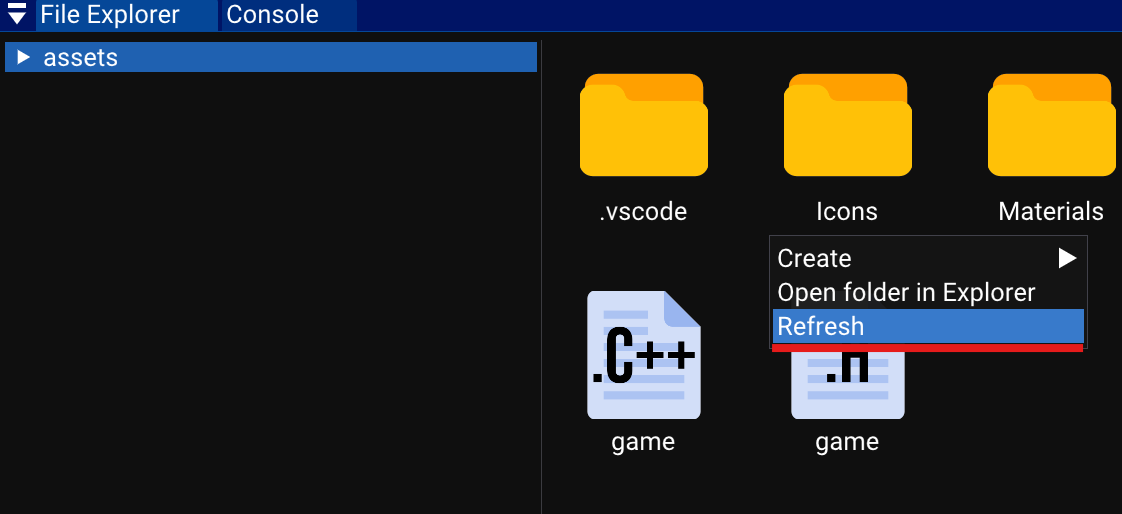

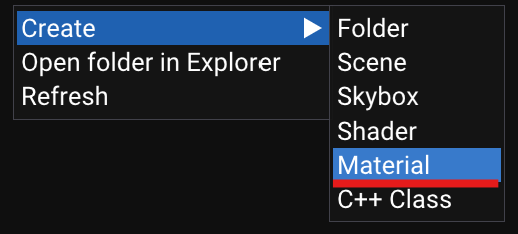

• You can right click the background of the file explorer and you will see a list of commands (Create files and component class, open folder in explorer...).

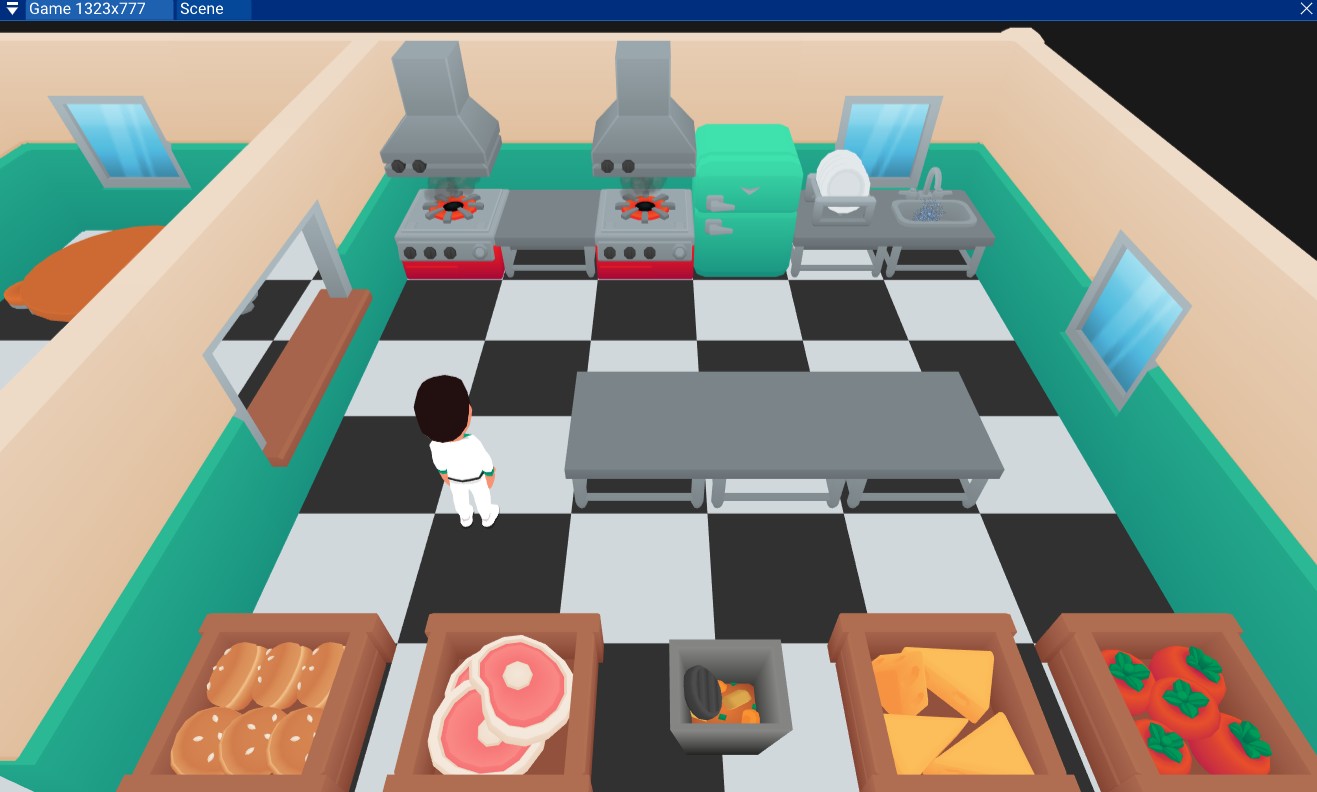

Game tab

This window show the view of the game camera. This is the same view in builds.

You can interract with it only in Play mode.

The numbers in the tab name are the view's resolution (width x height).

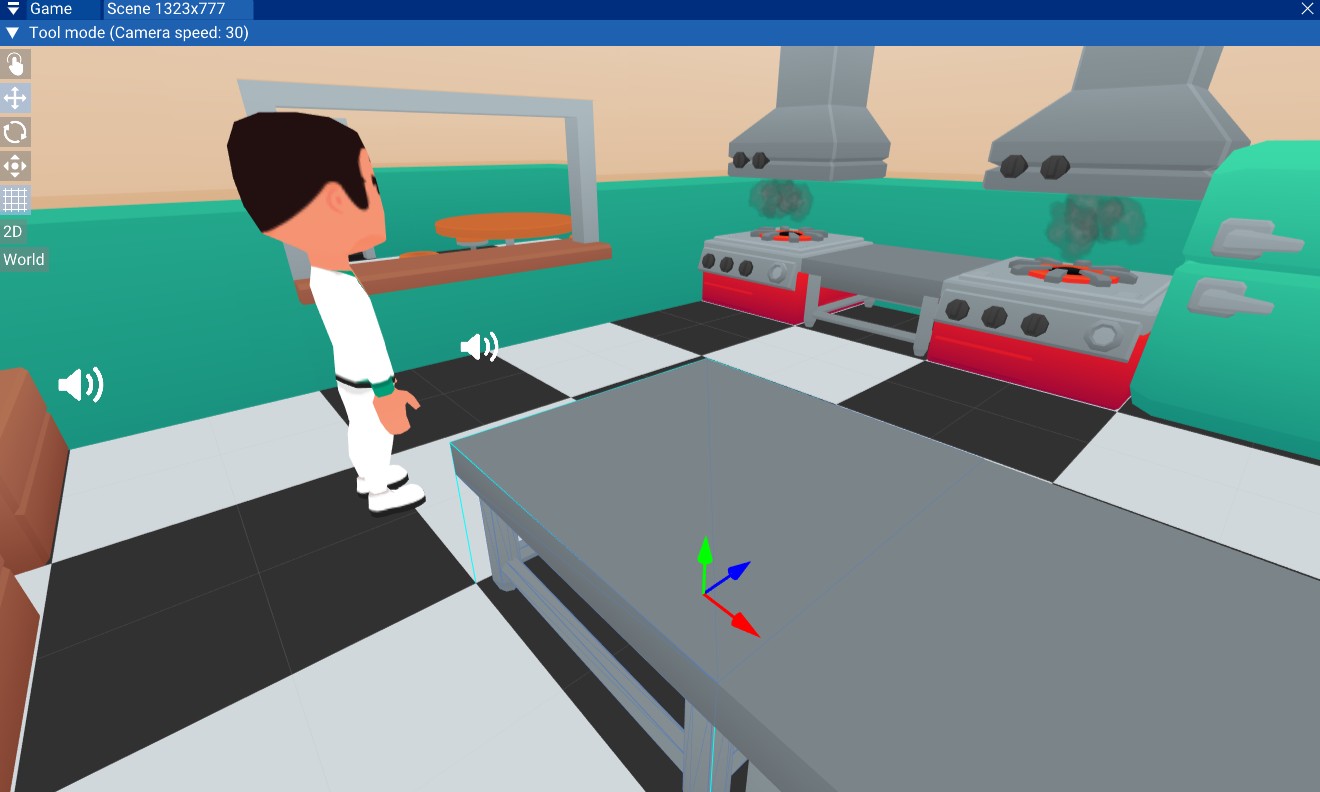

Scene tab

This window show the view of the editor camera.

Controls

You can move the camera using the arrow keys of the keyboard.
You can move the camera by moving the mouse while holding the mouse wheel button.
You can zoom/unzoom using the mouse wheel button. You can select objects by left clicking them with the mouse cursor.

The numbers in the tab name are the view's resolution (width x height).

Tools

At the left you have a list of tool modes:

• 1: Move the camera with the mouse.
• 2: Show arrows on the selected object to move it.
• 2: Show circles on the selected object to rotate it.
• 3: Show arrows on the selected object to scale it.
• 4: Toggle the grid.
• 2D: Set the view in 2D mode.
• World: Toggle if the arrows are affected by the rotation of the object.

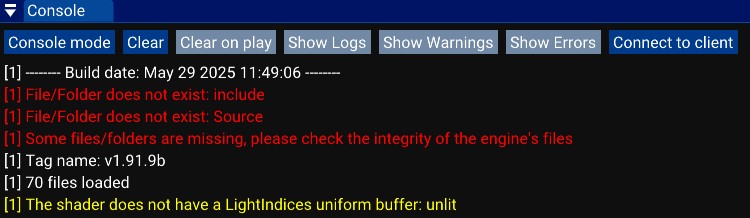

The console

The console window displays messages, warnings, and errors from both the game and the editor.
It helps you debug your game and understand any issues that occur within the editor.

There are 3 types of messages:

• Log: Informational messages that are not critical. These messages are mostly used for general feedback, such as successful loading of assets or routine operations.
• Warning: Indicates a potential issue that does not stop the game or editor from running, but might lead to problems if ignored. Warnings should be reviewed and addressed when possible.
• Error: Critical issues that usually prevent something from working correctly. Errors often stop certain systems from functioning and should be fixed immediately to ensure the game or editor runs properly.

Here is the list of buttons:

• Console mode/List mode: Console mode will show all messages without colors and ordered from the oldest to the newest message.
  List mode enable color and collaps identical messages.
• Clear: Remove all messages from the console.
• Clear on play: Remove all messages from the console when launching the game.
• Show Logs: On/Off button to list or not logs in List mode.
• Show Warnings: On/Off button to list or not warnings in List mode.
• Show Errors: On/Off button to list or not errors in List mode.

The profiler

The profiler window provides you information about the performances of your game and of the engine.

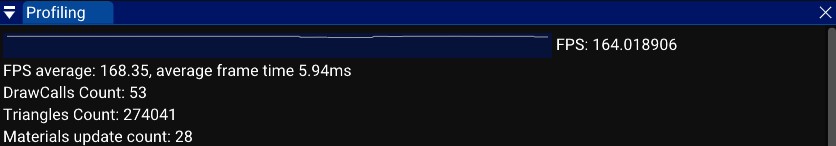

In the first part of the profiler, you can see basic information:

• FPS graph: The graph shows the number of frame per seconds. stable graph and high numbers are better.
• FPS average: The average number of frame per seconds. Higher is better.
• DrawCalls Count: When a submesh is rendered, it adds one to this counter. Lower is better, especially on older game consoles.
• Triangles Count: The number of rendered triangles. Lower is better.
• Materials update count: This counts how many times a material has been updated, specifically when its uniforms are modified before rendering. Lower is better.

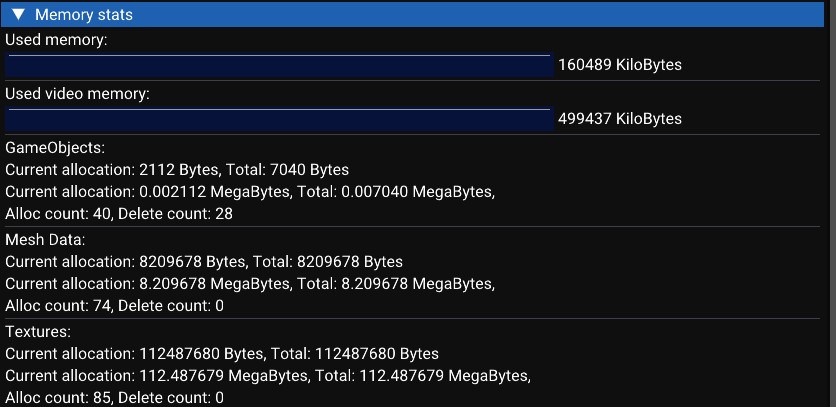

In the second part of the profiler, show the memory consumption of the engine.

• Used memory: It's the RAM usage (Components, audio clips...).
• Used video memory: It's the RAM usage of the graphics card (FrameBuffers, Textures, Meshes...).

There are some categories (GameObject, Mesh Data and Textures).

• Current allocation is the amount of memory used at this moment.
• Total is the amount of memory allocated since the beginning.
• Alloc count is the number of created objects since the beginning.
• Delete count is the number of deleted objects since the beginning.

Mesh Data and textures are the most important, for example the PSP only have 2MB of video memory. If the PSP is running out of VRAM, the RAM is used instead of textures and mesh data, but it's slower.

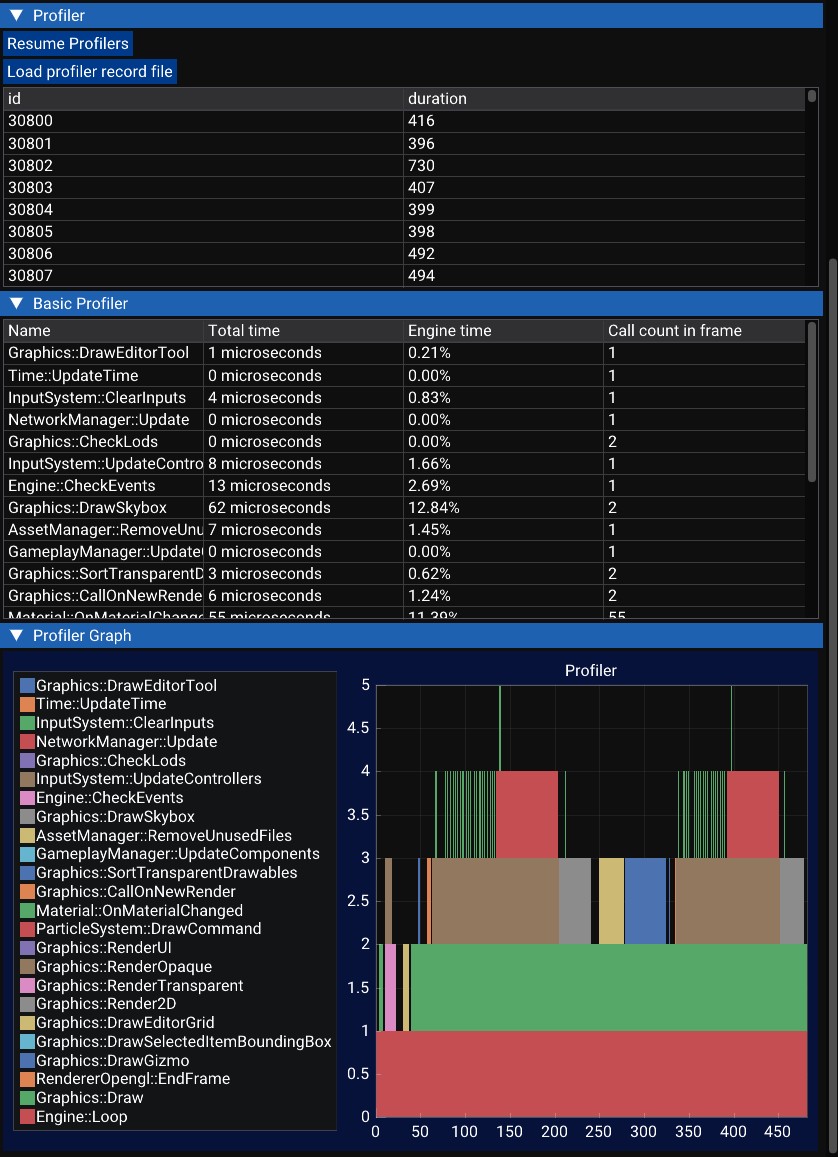

In the third part of the profiler, you can see a list of frame. Each frame is recorded (in a limit of 400 frames).
You can select the frame by clicking on the element in the list. You will see the profiling data in two forms:

• A simple list of C++ functions with the total CPU time used by them.
• A graph that draw each call.

You can pause the profiler with the button to read the value and you can load a profiler record file if you want to profile a build outside the editor.

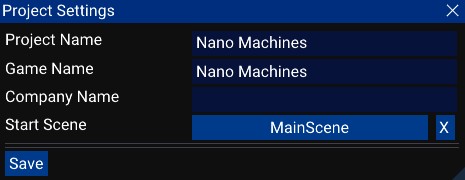

Project settings

The project settings window show all settings related to the project.
Each projet has it's own settings.

Values:

• Project Name: The name of the project, used by the project manager.
• Game Name: The name of the game, used in builds.
• Company Name: The name of your company. Can be your user name if you don't have one.
• Start Scene: The scene to load when the project is loaded. Used in builds. Should not be empty!

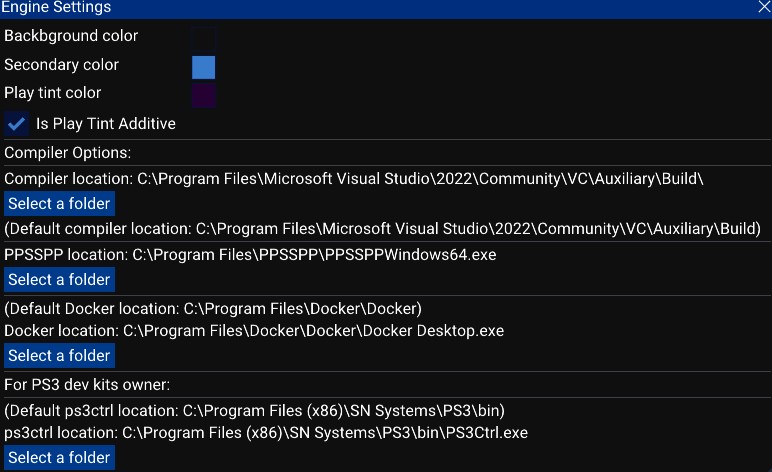

Engine settings

This windows show all settings related to the editor.
The settings are shared between all projects.

Here is the list of settings:

UI color

• Background color: Change the color of the editor background.
• Secondary color: Change the color of borders, buttons...
• Play tint color: Change the color of the background in play mode.
• Is Play Tint Additive: If enabled, the color is added to the background color, if disabled the color is multiplied to the background color.

Compiler options:

• Compiler location: Set the location of MSVC compiler.
• PPSSPP location: Set the location of PPSSPP emulator (Used for build and run).
• Docker location: Set the location of Docker Desktop (Used for game consoles builds).

For PS3 dev kits owner:

• ps3ctrl location: Set the location of ps3ctrl (Software from Sony).

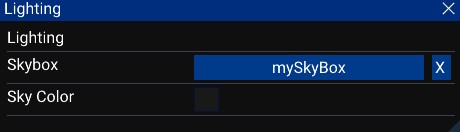

Lighting settings

The lighting settings window show all lighting settings related to the scene.

Options:

• Skybox: Set a skybox for the scene.
• Sky Color: Set the color if the sky if no skybox is set.

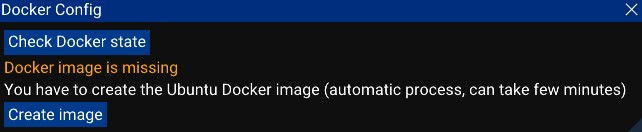

Docker configuration

The Docker configuration window shows you the current state of Docker and steps to finish the installation of Docker if Docker is not fully installed.

The Check Docker state button re-check if there is any change about the Docker installation. Here is the list of different states:

• Docker not installed: Docker is not detected on your system. See Game console support to install Docker.
• Docker not running: Docker is found on your system but the software is not running. When building a game Docker is automatically started. You can launch yourself Docker too.
• Missing Docker Image: Docker is running but Xenity Engine can't find the Docker Image (The image includes all the needed files and tools to compile games).
• Running: Docker is ready to use, the configuration is done.

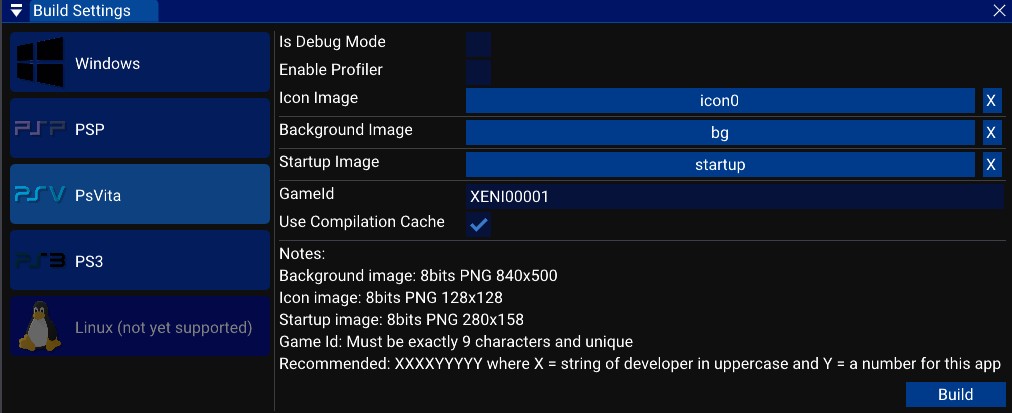

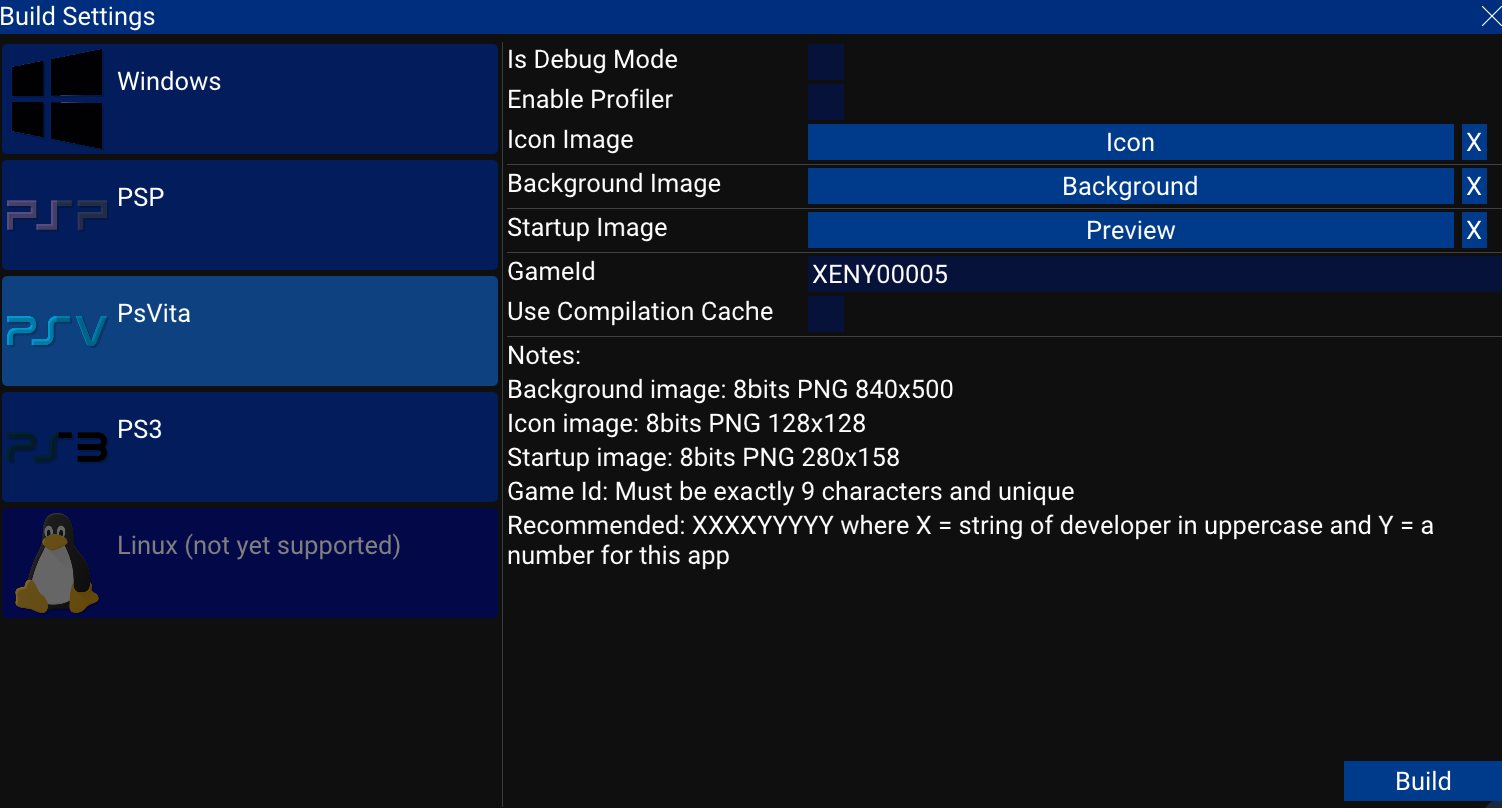

Build settings

This menu allows you to build your game on various platforms such as Windows or PlayStation Portable.

Each platform requires some settings and here are some of them:

• Is Debug Mode: This option enable more logs and a "DEBUG" preprocessor. This enable assertions too. Reduce performances. (Do not enable when shipping the game)
• Enable Profiler: This option enable profiling. You will be able to save profiling data into files. Reduce performances. (Do not enable when shipping the game)
• Icons/Image: You can chose an icon and images for the game. Game consoles use images to show the game in the game list.
• GameID: Game consoles use ids for their games. Each game has an unique ID.
• Use Compilation Cache: Improve compilation speed by reusing compiled code from previous builds. Disable this option if you notice weird behavior in builds with your code.

Some rules about GameID and images are in the notes part. Respect them.

There are two builds button (not for all platforms):

• Build: Ask for a path, build the game and save the binaries in the selected folder.
• Build and Run: Ask for a path, build the game and save the binaries in the selected folder and start the game. (The game will start in a emulator for game consoles).

Dev kit control

If you are an owner of a PlayStation 3 dev kit, this menu can be useful for you.
This window provides a way to control a dev kit using official PS3 tools. (Softwares not included with Xenity Engine).

The Dev kits list shows every registred dev kit in Target Manager.
The Update dev kits list button will launch Target Manager and get the list of dev kits.
Then you can click on the dev kit to use.

Power Management

You can turn on or off your dev kit from the editor.
If you want to leave the game you can reset the dev kit.

Game Management

If the game's files are located on the dev kit hard drive, you can launch it with the Launch game from ps3 hdd.
This option is useful with fake dev kit (retail PS3 running dev kit firmware). The file should be located in /dev_hdd0/xenity_engine/XenityBuild.self.

If the game's files are on your computer, you can launch it with the Launch game from pc.
This option only works with an official PlayStation dev kit. You have to select the .fake.self file.

Usage

Hera are all the information to learn how to use the engine.

• How to create a project
• How to add an existing project
• How a scene works
• How to import files
• Add your first object in the scene
• How to create a component
• How to play your game in the editor
• How to play your game on game console
• Performances tips
• Common issues
• Where to get help

How to create a project

With Xenity you can work with multiple projects. If you don't have one, let's create one.

Click on Create project:

This will show a new menu asking for two info:

• Location of the project,
• Name of the project.

By default the project location is User/Documents/Xenity_Projects/ but if you want you can select a new folder.

Then you can finally click on Create project.

How to add an existing project

If you have a folder containing a Xenity project and the project is not listed in the project list, you can add it.

If you want, there is a list of project samples that you can download, see Game Project Samples.

First click on the Load project button:

And select the folder of the project, this folder should contains the asset folder.

Then the project will load and will be added to the project list.

How a scene works

In Xenity, a Scene is a container that holds and manages a collection of GameObjects and their associated Components. It represents a specific state or environment in the game, such as a level, a menu, or a cutscene.

Each GameObject in the scene acts as an entity in the world and can hold one or more Components, which define its behavior or appearance (e.g., a Transform, MeshRenderer, Collider, or Script).

When a scene is loaded, Xenity initializes all the GameObjects and their Components, and the engine begins updating them each frame. Scenes can be loaded, unloaded, or switched during runtime, allowing for smooth transitions between different parts of the game.

If a component or gameobject is destroyed using the Destroy command (see Object Management), the object is destroyed from the memory at the end of the frame.

All assets referenced in the scene will be loaded while the scene is loading. The asset loading is asynchrone on the editor, so textures may look wrong for a small amount of time.

A scene always should have an active camera, you should not add more cameras.

You can load scenes using the SceneManager class. See the Scene asset class.

How to import files

To add files to your Xenity project, you simply have to drag and drop files or folders into the File Explorer.

You can also add files using the Windows file manager into the asset folder of your project. You may have to refresh the file explorer by right clicking on the background and then click on Refresh.

See Compatible asset formats.

Add your first object in the scene

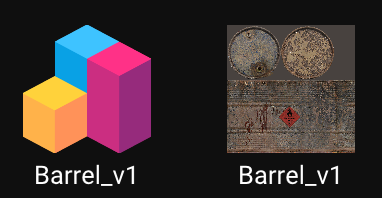

Once you have a mesh and a texture, you are almost able to use them in your scene.

You need a material for your mesh. To create one, you can right click on your texture and click on Create a material for this:

Or you can create an empty material by right clicking on the background and by clicking material in the Create menu:

Then you will have a new material. Use the Standard shader if you want to use lighting, or use the Unlit shader if you want a bright texture without lighting. Unlit has way better performances.

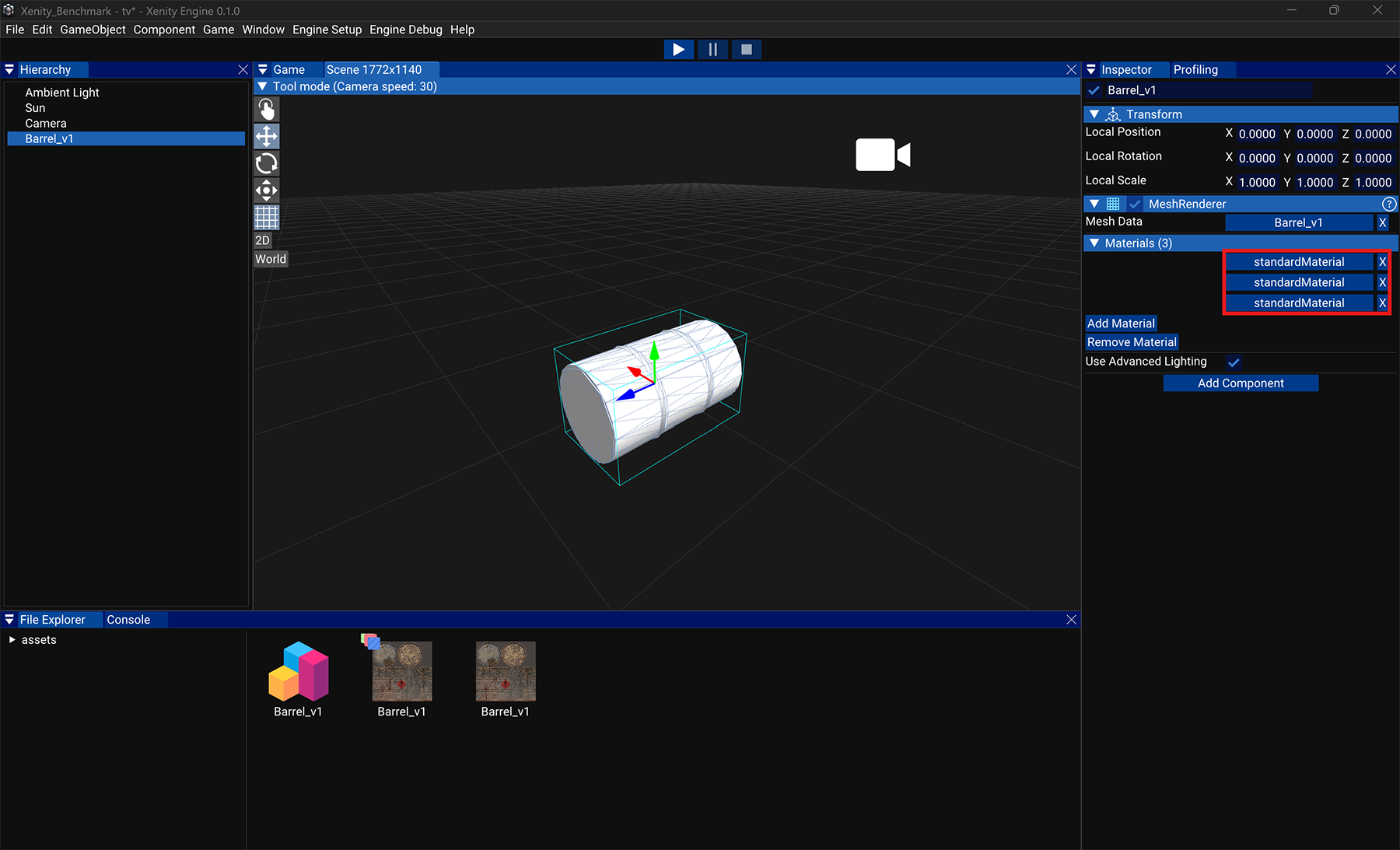

Then you can drag and drop your mesh into the scene and set the material in the materials list of the mesh renderer.

There are two ways to change a material variable:

• Drag and drop the asset into the slot,
• Click on the slot to show the list of asset and double click on the asset you want to use.

Each material slot is a material for a submesh. This mesh has 3 submeshes.

I'm only applying a material to one submesh because other submesh are LODs.

And now if you want, you can add more components to your GameObject by clicking Add Component:

How to create a component

Xenity provides a simple way to create a component for your game.

To modify scripts, please install Visual Studio Code.

First, make a right click on the background of the file explorer, then click on Create C++ class:

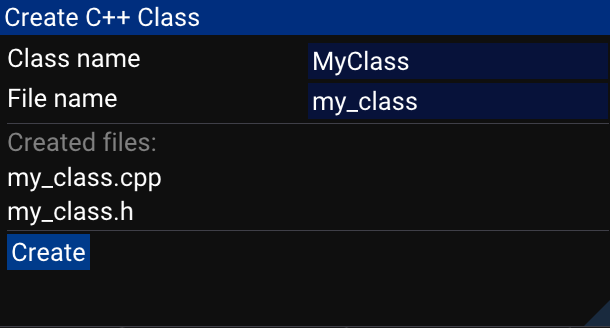

Then a menu will ask for information about the new class:

• Class name,
• File name.

If you modify the class name, the file name will be automatically updated with the new name.

And finally, the engine needs to know that this class exists. For this, you have to open game.cpp and add two lines:

• An include to the file,
• A REGISTER_COMPONENT call.

REGISTER_COMPONENT allows you to add parameters about this class, for example the DisableUpdateFunction will prevent the engine from calling the Update function every frame.

How to play your game in the editor

Xenity allows you to test your game directly in the editor.

For this, you have to compile the code of your game to be able to use scripts you have made.

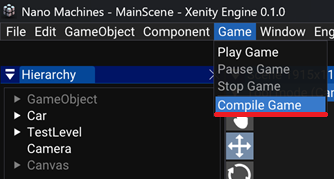

To compile, open the Game tab and click on Compile Game.

Each time you change you game code, you have to compile to apply changes.

You can compile while playing your game, the editor will reload the current scene, but this feature may not work properly. (Heap created by components won't be restored, only reflected variables will be restored).

How to play your game on game console

First of all, to run a homebrew made with Xenity, you need a jailbreaked game console.

It's highly recommended to test your builds on real hardware before publishing your game. If you cannot test, you can ask to some people on homebrew discord servers to test them or ask me.

To build a game on game console, you have to setup Docker, see Game Console Installation. Then you can check the Build Setting Menu, it's the menu to use to make builds.

Preview of the build menu:

Each game console has a special executable file.

• On PSP it's an EBOOT.PBP file, it will directly launch the game. Cannot be renamed.
• On PsVita it's a .vpk file, it will install the game, asset files are in the .vpk file. Can be renamed.
• On PS3 it's a .self, it will directly launch the game. Can be renamed.

Emulation

You can try your game on emulator, but it's not recommended to check performances with them, a game can run smoothly on an emulator but run poorly on real hardware or not even boot! Sometimes emulators won't crash if you code has a bug.

• For PSP you can use PPSSPP.
• For PS3 you can use RPCS3.
• No working emulator for PsVita is available.

Running on real hardware

PSP

Put the game build folder in the GAME folder of your PSP memory stick then you should see a new game in the game list.

The log file is located next the the EBOOT file.

PsVita

Setup

Xenity games needs some setup to run on a PsVita. The libshacccg.suprx file needs to be extracted and decrypted. This file is needed to enable the shader compiler. This setup has to be done only once.

You can follow this tutorial.

Install the game

Put the .vpk file on the memory card of your PsVita (using FTP or USB), then launch VitaShell, find the .vpk file and press X to install. Confirm the next popup about security. Then a new bubble with the icon of the game should pop on the main PsVita screen.

PS3

Put the game build folder on the hard drive of your PS3 using FTP or put the game folder on an USB key, then launch MultiMan (or another software that can launch .self files) and launch the .self file. If you have a .fake.self file, it's only used by devevelopment kits, you can delete this file if you don't have one.

The log file is located next the the .self file.

Performances tips

Performances on Xenity can be affected for many reasons.

A great way to analyze performances is to use the integrated profiler in the editor.

See the Profiler Menu and the Profiler class.

Physics

On small systems like the PlayStation Portable, performances can be very low with too many rigidbodies. Try to reduce the amount of activated rigidbody in the scene.

Audio

Streaming is very slow on game console, try to avoid having more than one audio source using an audio clip from the storage memory. Only musics should be streamed from the storage memory. Short audio should be in RAM. See the Loaded In Memory option in Audio Clip The Loaded In Memory option consumes a large amount of memory, that why you should not enable this option for every audio clips.

Rendering

Lighting is extremely heavy on Xenity, try to reduce as much as possible the point/spot light count in you scene. Try to use smaller range for your lights.

Transparency is heavy on PS3 and PsVita, try to avoid them by using Cutout on materials instead.

Common issues

Rendering issues

Black screen

You probably don't have a camera in the scene.

Disapearing triangles on PSP

The hardware clipping on the PSP is not great. There are two ways to reduce this problem:

• Increase the near plane value of the camera
• Reduce the size of the triangles of affected meshes (generally by increasing triangle count with subdivision)

I can't use more than 4 lights on PSP

The PlayStation Portable has a hardware limit of 4 lights per object. For example you can use:

• 1 directional light,
• 1 ambient light,
• 2 point lights.

You can have more lights in the whole scene but only 4 lights will be used for the rendering of a mesh.

Lighting priorities:

• Ambient light has the priority over the directional light,
• Directional light has the priority over the point light,
• Point light has the priority over the spot light.

My material is black in my scene

Check if:

• Use lighting option of your material is checked if you are using the Standard shader or unchecked if you are using Unlit shader,
• You have a light in the scene if you are using Standard shader.

My texture does look transparent on PSP/PS3

By default textures on PSP and PS3 are compressed without alpha channel.

You have to use the RGBA_8888, RGBA_5551, RGBA_4444 types instead of RGBA_5650 type to get transparent textures.

Audio issues

If the audio sounds weird on PlayStation 3, make sure to use 48000Hz audio files. But on other platforms you should use 44000Hz audio files.

Crash

On Windows, if the game crash, you should find a new file next to the game executable called crash_dump.txt containing the call stack of the crash. This will shows you where the crash has happened.

On game consoles, there is no easy way to understand a crash. You can add debug logs in your code to see where logs work and where they stop working. If it's the engine that crashes and not your code, create an issue on the github page of the engine to explain how to reproduce the crash. You can send me your project to help me finding the bug. You can make a pull request if you can fix the bug yourself.

Where to get help

If you have a bug or a problem that is not listed in Common issues, you can create an issue on the github page, or send me a message on Discord or by email. You can send me your project to help me finding a solution for your issue, nothing will be shared.

Discord: fewnity

Email: fewnity@gmail.com

Compatible asset formats

Scripting API reference

This part of the documentation show all details about the classes and lines of code that you can use in Xenity Engine.

• Preprocessors: A list of preprocessors that can be used in your code.
• Editor: List of every editor specific classes and functions.
• Engine: List of every classes, functions and enums that you can use for you game.

Preprocessors

A list of preprocessors that can be used in your code. A preprocessor can be used to change your code at compile time.

Sample:

void MyFunction()
{
#if defined(EDITOR)
    Debug::Print("Running in the editor!");
#else

#if defined(__PSP__)
    Debug::Print("Running on PSP!");
#elif defined(__vita__)
    Debug::Print("Running on PsVita!");
#else
    Debug::Print("Running on something else!");
#endif

#endif
}

Platforms

• __PSP__ is defined when compiling for PlayStation Portable
• __vita__ is defined when compiling for PlayStation Vita
• __PS3__ is defined when compiling for PlayStation 3
• _WIN32 & _WIN64 is defined when compiling for Windows
• __LINUX__ is defined when compiling for Linux

Editor

• EDITOR is defined when compiling to play in the editor

Debug

• DEBUG is defined when compiling in debug mode
• USE_PROFILER is defined when compiling with the profiler enabled

Editor

List of every editor specific classes and functions.

Editor classes and functions can't be used in game builds. You can use them only in the editor.

• Gizmo: Class used to rendering shapes in the editor.
• EditorIcons: Class used to get icon textures of the editor.

Gizmo

Add this in your code:

#include <editor/rendering/gizmo.h>

Description

This class is used to draw debug shapes or sprites.

Gizmos can be renderer in OnDrawGizmos and OnDrawGizmosSelected events.

How to use Gizmos events:

Override functions you want to use:

class MyComponent : public Component
{
public:
    ...
private:
    void OnDrawGizmos() override;
    void OnDrawGizmosSelected() override;
}

Then implement the functions:

void MyComponent::OnDrawGizmos()
{
#if defined(EDITOR)
    Gizmo::DrawLine(Vector3(0, 0, 0), Vector3(1, 1, 1));
#endif
}

void MyComponent::OnDrawGizmosSelected()
{
#if defined(EDITOR)
    Gizmo::DrawLine(Vector3(1, 1, 1), Vector3(0, 0, 0));
#endif
}

The use of #if defined(EDITOR) is needed because the Gizmo class is not visible in game builds.

Static methods

SetColor

Set Gizmo draw color (does not affect sprites).

Parameters:

• newColor: New color to use

void SetColor(const Color& newColor)

Code sample:

const Color redColor = Color::CreateFromRGBAFloat(1, 0, 0, 1);
Gizmo::SetColor(redColor);

DrawLine

Draw a simple line from A to B.

Parameters:

• a: Start point
• b: End point

void DrawLine(const Vector3& a, const Vector3& b)

Code sample:

Gizmo::DrawLine(Vector3(0, 0, 0), Vector3(1, 1, 1));

DrawBillboard

Draw a billboard sprite.

Parameters:

• position: Position of the sprite
• scale: Scale of the sprite
• texture: Texture to draw
• color: Color of the sprite

void DrawBillboard(
    const Vector3& position,
    const Vector2& scale,
    const std::shared_ptr<Texture>& texture,
    const Color& color)

Code sample:

Gizmo::DrawBillboard(
    GetTransform()->GetPosition(),
    Vector2(0.2f),
    EditorIcons::GetIcon(IconName::Icon_Audio_Source),
    Color::CreateFromRGBAFloat(1, 1, 1, 0.5f));

DrawSphere

Draw a wired sphere.

Parameters:

• position: Position of the sphere
• rotation: Rotation of the sphere
• radius: Radius of the sphere

void DrawSphere(
    const Vector3& position,
    const Quaternion& rotation,
    const float radius)

Code sample:

Gizmo::DrawSphere(
    GetTransform()->GetPosition(),
    GetTransform()->GetRotation(),
    2.0f);

EditorIcons

Add this in your code:

#include <editor/ui/editor_icons.h>

Description

Class used to get icon textures of the editor.
Can be used for Gizmo.

Static methods

GetIcons

Get the list of all editor icons.

const std::vector<std::shared_ptr<Texture>>& GetIcons()

Code sample:

const std::vector<std::shared_ptr<Texture>>& icons = EditorIcons::GetIcons();

const std::shared_ptr<Texture>& cameraIcon = icons[IconName::Icon_Camera];

GetIcon

Get an icon by its name enum.

Parameters:

• iconName: Icon name Enum

const std::shared_ptr<Texture>& GetIcon(IconName iconName)

Code sample:

const std::shared_ptr<Texture>& cameraIcon = EditorIcons::GetIcon(IconName::Icon_Camera);

IconName Enum

Add this in your code:

#include <editor/ui/editor_icons.h>

Description

Enum that list every icons used in the editor.
Not available in game builds.

Values

Engine

Here is a list of every classes, functions and enums that you can use for you game.

• Application: Class used to manage the application and get information about it.
• Asset: List of all game assets.
• Color: This class stores information about a color.
• Components: List of every components.
• DateTime: This class represents an instant in time.
• Debug: Class used to print text in the console and in file.
• Enumerations: Information about enumerations.
• Event: This class gives the possibility to bind a function to an event.
• FileSystem: This class provides methods to manipulate files and directories.
• GameObject: A GameObject is a class that contains some properties and a list of components.
• Inputs: Category of all inputs classes.
• Math: Category of all math classes.
• Network: Category of all networking classes.
• Noise: Class to generate 1D, 2D, 3D and 4D Perlin noise.
• Object management: List of functions to manage GameObject and Components of your game.
• Physics: Category if all physics classes.
• Reflective: Class used for reflection.
• SceneManager: Class to load scenes.
• Screen: Class to get information and to interact with the screen.
• Time: Class to get time information (Delta time, elapsed time).
• Transform: Class representing a 3D transformation (position, rotation, scale) of a GameObject.
• UI Rendering: Enum about UI rendering.
• Utils: Utility classes.
• VertexDescriptor: Class that store the data structure of a vertex.

Application

Add this in your code:

#include <engine/application.h>

Description

Class used to manage the application and get information about it.

Static methods

OpenURL

Opens the link in a web browser (Only for Windows).

void OpenURL(const std::string& url)

Code sample:

Application::OpenURL("https://google.com");

Quit

Quits the application.

void Quit()

Code sample:

Application::Quit();

GetPlatform

Returns the current platform the application is running on.

Platform GetPlatform()

Code sample:

if(Application::GetPlatform() == Platform::P_PSP)
{
    Debug::Print("Running on PSP!");
}

GetXenityVersion

Returns the current version of Xenity Engine.

std::string GetXenityVersion()

Code sample:

if(Application::GetXenityVersion() == "1.0.0")
{
    // Special behavior for a specific version of the engine
}
else
{
    // ...
}

GetGameName

Returns the name of the game.

std::string GetGameName()

Code sample:

Debug::Print("Game name: " + Application::GetGameName());

GetCompanyName

Returns the name of the company.

std::string GetCompanyName()

Code sample:

Debug::Print("Company name: " + Application::GetCompanyName());

IsInEditor

Returns if the application is running in the editor.

bool IsInEditor()

Code sample:

if(Application::IsInEditor())
{
    Debug::Print("Running in editor!");
}
else
{
    Debug::Print("Not running in editor!");
}

// For something at compile time
#if defined(EDITOR)
    Debug::Print("Running in editor!");
#else
    Debug::Print("Not running in editor!");
#endif

GetGameDataFolder

Return the game folder (folder where you can write data).

bool GetGameDataFolder()

Code sample:

std::string fileName = Application::GetGameDataFolder() + "my_file.txt";
std::shared_ptr<File> myFile = FileSystem::MakeFile(fileName);
bool isOpened = myFile->Open(FileMode::WriteCreateFile);

GetGameFolder

Returns the game folder (folder where the game is located, may be read-only).

bool GetGameFolder()

Code sample:

std::string fileName = Application::GetGameFolder() + "my_file.txt";
std::shared_ptr<File> myFile = FileSystem::MakeFile(fileName);
bool isOpened = myFile->Open(FileMode::ReadOnly);

Assets

Here is a list of every game assets.

• AudioClip: Asset that stores audio like a sound effect or a music.
• Font: Asset that stores a text font.
• Icon: Asset that stores an icon.
• Material: Handles the visual appearance of rendered objects, including shaders and textures.
• MeshData: Asset that stores all the data of a mesh.
• Prefab: A prefab stores GameObjects and Components.
• Scene: Asset that represents a game world. A scene stores a list of GameObject and Components.
• Shader: Asset that stores shader code.
• Skybox: Asset that references all textures that compose a skybox.
• Texture: Asset that stores an image.

AudioClip

Add this in your code:

#include <engine/audio/audio_clip.h>

Description

Asset that stores audio like a sound effect or a music.

Used by Audio Source.

Inspector settings

Font

Add this in your code:

#include <engine/graphics/ui/font.h>

Description

Asset that stores a text font.

Used by TextRenderer and by TextMesh.

Icon

Add this in your code:

#include <engine/graphics/ui/icon.h>

Description

Asset that stores an icon.

Used in the Build Settings menu.

Material

Add this in your code:

#include <engine/graphics/material.h>

Description

Handles the visual appearance of rendered objects, including shaders and textures.
The Material class allows you to configure how an object should look when drawn on screen.

Inspector settings

Public methods

SetAttribute

Set a value to an attribute in the shader when this material is used.

To use only when you are using custom shaders.

Parameters:

• attribute: Attribute name
• value: New attribute value

void SetAttribute(const char* attribute, const Vector2& value)
void SetAttribute(const char* attribute, const Vector3& value)
void SetAttribute(const char* attribute, const Vector4& value)
void SetAttribute(const char* attribute, const float value)
void SetAttribute(const char* attribute, const int value)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetAttribute("MyAttribute", Vector3(1, 0.5f, 1));

SetShader

Set the material shader.

Parameters:

• shader: Shader to use

void SetShader(const std::shared_ptr<Shader>& shader)

Code sample:

std::shared_ptr<Material> material; // Filled variable
std::shared_ptr<Shader> shader; // Filled variable
material->SetShader(shader);

SetTexture

Set the material texture.

Parameters:

• texture: Texture to use

void SetTexture(const std::shared_ptr<Texture>& texture)

Code sample:

std::shared_ptr<Material> material; // Filled variable
std::shared_ptr<Texture> texture; // Filled variable
material->SetTexture(texture);

SetUseLighting

Set the if the material uses lighting. Disable this only on Unlit shaders.

Parameters:

• useLighting: Does the material uses lighting?

void SetUseLighting(const bool useLighting)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetUseLighting(true);

SetOffset

Set the texture offset.

Parameters:

• offset: Offset of the texture

void SetOffset(const Vector2& offset)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetOffset(Vector2(0.5f, 0.5f));

SetTiling

Set the texture tiling.

Parameters:

• tiling: Tiling of the texture

void SetTiling(const Vector2& tiling)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetTiling(Vector2(2.0f, 2.0f));

GetShader

Get the shader of the material.

 const std::shared_ptr<Shader>& GetShader() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
std::shared_ptr<Shader> shader = material->GetShader();

GetTexture

Get the texture of the material.

const std::shared_ptr<Texture>& GetTexture() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
std::shared_ptr<Texture> texture = material->GetTexture();

GetUseLighting

Get if the material uses lighting.

bool GetUseLighting() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
bool isUsingLighting = material->GetUseLighting();

GetRenderingMode

Get the rendering mode of the material.

MaterialRenderingMode GetRenderingMode() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
MaterialRenderingMode mode = material->GetRenderingMode();

GetOffset

Get the texture offset of the material.

const Vector2& GetOffset() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
const Vector2& offset = material->GetOffset();

GetTiling

Get the texture tiling of the material.

const Vector2& GetTiling() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
const Vector2& tiling = material->GetTiling();

GetColor

Get the color of the material.

const Color& GetColor() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
const Color& color = material->GetColor();

SetColor

Set the color of the material.

Parameters:

• color: Color of the material

void SetColor(const Color& color)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetColor(Color::CreateFromRGBAFloat(1, 0.5f, 0.5f, 1));

SetAlphaCutoff

Set the alpha cutoff of the material.

Parameters:

• alphaCutoff: New alpha cutoff value [0.0f;1.0f]

void SetAlphaCutoff(float alphaCutoff)

Code sample:

std::shared_ptr<Material> material; // Filled variable
material->SetAlphaCutoff(0.5f);

GetAlphaCutoff

Get the alpha cutoff of the material.

float GetAlphaCutoff() const

Code sample:

std::shared_ptr<Material> material; // Filled variable
float alphaCutoff = material->GetAlphaCutoff();

MaterialRenderingMode Enum

Add this in your code:

#include <engine/graphics/material_rendering_mode.h>

Description

Enum to define how an object is drawn.

Values

MeshData

Add this in your code:

#include <engine/graphics/3d_graphics/mesh_data.h>

Description

Asset that stores all the data of a mesh.

Static methods

CreateMeshData

Dynamically create a mesh.

std::shared_ptr<MeshData> CreateMeshData()

Code sample:

std::shared_ptr<MeshData> newMesh = MeshData::CreateMeshData();

Public methods

GetMinBoundingBox

Get the minimum position of the bounding box. (Box including all submeshes).

const Vector3& GetMinBoundingBox() const

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const Vector3& minPos = meshData->GetMinBoundingBox();

GetMaxBoundingBox

Get the maximum position of the bounding box. (Box including all submeshes).

const Vector3& GetMaxBoundingBox() const

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const Vector3& maxPos = meshData->GetMaxBoundingBox();

GetBoundingSphere

Get mesh bounding sphere. (Sphere including all submeshes).

const Sphere& GetBoundingSphere() const

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const Sphere& meshSphere = meshData->GetBoundingSphere();

CreateSubMesh

Create a sub mesh and allocate memory for it.

Parameters:

• vertexCount: The number of vertices allocated
• indexCount: The number of indices allocated
• vertexDescriptorList: The vertex data structure

void CreateSubMesh(uint32_t verticeCount, uint32_t index_count, const VertexDescriptor& vertexDescriptorList)

Code sample:

std::shared_ptr<MeshData> newMesh = MeshData::CreateMeshData();

VertexDescriptor descriptor;
descriptor.AddVertexElement(VertexElements::UV_32_BITS);
descriptor.AddVertexElement(VertexElements::POSITION_32_BITS);

newMesh->CreateSubMesh(6,0, descriptor);

GetSubMesh

Get a submesh by index.

Parameters:

• index: Index of the submesh

const std::unique_ptr<SubMesh>& GetSubMesh(size_t index)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
const std::unique_ptr<SubMesh>& subMesh2 = meshData->GetSubMesh(2);

Update

Update the mesh after a modification on the submeshes.

void Update()

Code sample:

SubMesh

Add this in your code:

#include <engine/graphics/3d_graphics/mesh_data.h>

Description

Class that store vertices and indices of a sub mesh.

Public methods

SetVertex (UV, Color, Position)

Set the data of a vertex.

Parameters:

• u: U texture coordinate
• v: v texture coordinate
• color: color
• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetVertex(float u, float v,
               const Color& color,
               float x, float y, float z,
               uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetVertex(1.0f, 0.0f, Color::CreateFromRGBA(255, 128, 128, 255), 1.0f, 2.0f, 1.0f, 0);

SetVertex (Position)

Set the data of a vertex.

Parameters:

• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetVertex(float x, float y, float z,
               uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetVertex(1.0f, 2.0f, 1.0f, 0);

SetVertex (UV, Position)

Set the data of a vertex.

Parameters:

• u: U texture coordinate
• v: v texture coordinate
• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetVertex(float u, float v,
               float x, float y, float z,
               uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetVertex(1.0f, 0.0f, 1.0f, 2.0f, 1.0f, 0);

SetVertex (UV, Normal, Position)

Set the data of a vertex.

Parameters:

• u: U texture coordinate
• v: v texture coordinate
• nx: X normal
• ny: Y normal
• nz: Z normal
• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetVertex(float u, float v,
               float nx, float ny, float nz,
               float x, float y, float z,
               uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetVertex(1.0f, 0.0f, 0.0f, 0.0f, 1.0f, 1.0f, 2.0f, 1.0f, 0);

SetVertex (Normal, Position)

Set the data of a vertex.

Parameters:

• nx: X normal
• ny: Y normal
• nz: Z normal
• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetVertex(float nx, float ny, float nz,
               float x, float y, float z,
               uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetVertex(0.0f, 0.0f, 1.0f, 1.0f, 2.0f, 1.0f, 0);

SetPosition

Set the position of a vertex.

Parameters:

• x: X position
• y: Y position
• z: Z position
• vertexIndex: Index of the vertex to modify

void SetPosition(float x, float y, float z, uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetPosition(1.0f, 2.0f, 1.0f, 0);

SetNormal

Set the normal of a vertex.

Parameters:

• nx: X normal
• ny: Y normal
• nz: Z normal
• vertexIndex: Index of the vertex to modify

void SetNormal(float nx, float ny, float nz, uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetNormal(0.0f, 0.0f, 1.0f, 0);

SetUV

Set the UV coordinates of a vertex.

Parameters:

• u: U texture coordinate
• v: v texture coordinate
• vertexIndex: Index of the vertex to modify

void SetUV(float u, float v, uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetUV(1.0f, 0.0f, 0);

SetColor

Set the color of a vertex.

Parameters:

• color: color
• vertexIndex: Index of the vertex to modify

void SetColor(const Color& color, uint32_t vertexIndex)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
subMesh0->SetColor(Color::CreateFromRGBA(255, 128, 128, 255), 0);

SetIndex

Set index value.

Parameters:

• index: The new vertex index
• value: Index to change

void SetIndex(size_t index, uint32_t value)

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);
// Make a triangle with the 5,3,4 indices
subMesh0->SetIndex(5, 0);
subMesh0->SetIndex(3, 1);
subMesh0->SetIndex(4, 2);

GetIndices

Get indices data pointer. (unsigned short or unsigned int).

void* GetIndices() const

Code sample:

std::shared_ptr<MeshData> meshData; // Filled variable
const std::unique_ptr<SubMesh>& subMesh0 = meshData->GetSubMesh(0);

if (subMesh->usesShortIndices)
{
    unsigned short& index = ((unsigned short*)subMesh->GetIndices())[0];
}
else
{
    unsigned int& index = ((unsigned int*)subMesh->GetIndices())[0];
}

Prefab

Add this in your code:

#include <engine/game_elements/prefab.h>

Description

A prefab stores GameObjects and Components.

A prefab is created when dragging a GameObject from the Hierarchy to the File Explorer.
Then you can recreate the GameObject by dragging the prefab from the File Explorer to the Scene tab.

Scene

Add this in your code:

#include <engine/scene_management/scene.h>

Description

Asset that represents a game world. A scene stores a list of GameObject and Components.

A scene should a least contains a camera.

It can be used in the Project Settings menu and by the SceneManager class.

Shader

Add this in your code:

#include <engine/graphics/shader/shader.h>

Description

Asset that stores shader code.

Not used on PSP.

Skybox

Add this in your code:

#include <engine/graphics/skybox.h>

Description

Asset that references all textures that compose a skybox.

Can be used in the Lighting Settigs menu.

Variables

Texture

Add this in your code:

#include <engine/graphics/texture/texture.h>

Description

Asset that stores an image.

A texture can be created dynamically.

Inspector settings

PSP additional Inspector settings

PS3 additional Inspector settings

Static methods

CreateTexture

Dynamically create a texture.

Parameters:

• params: Parameters for the texture creation

std::shared_ptr<Texture> CreateTexture(const TextureConstructorParams& params)

Code sample:

TextureConstructorParams params;
params.width = 128;
params.height = 128;
params.filter = Filter::Bilinear;
params.wrapMode = WrapMode::Repeat;
params.pspTextureType = PSPTextureType::RGBA_4444;
params.ps3TextureType = PS3TextureType::ARGB_4444;
params.hasAlpha = true;

std::shared_ptr<Texture> newTexture = Texture::CreateTexture(params);

Public methods

SetFilter

Set texture filter.

Parameters:

• filter: Filtering mode

void SetFilter(const Filter filter)

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
texture->SetFilter(Filter::Point);
texture->SetFilter(Filter::Bilinear);

SetWrapMode

Set texture wrap mode.

Parameters:

• mode: Wraping mode

void SetWrapMode(const WrapMode mode)

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
texture->SetWrapMode(WrapMode::Point);
texture->SetWrapMode(WrapMode::Bilinear);

GetWidth

Get texture width.

int GetWidth() const

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
int width = texture->GetWidth();

GetHeight

Get texture height.

int GetHeight() const

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
int height = texture->GetHeight();

SetPixelPerUnit

Set texture pixel per unit.

void SetPixelPerUnit(int value)

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
texture->SetPixelPerUnit(100);

GetPixelPerUnit

Get texture pixel per unit.

int GetPixelPerUnit() const

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
int pixelPerUnit = texture->GetPixelPerUnit();

GetUseMipmap

Get if the texture is using mipmap.

bool GetUseMipmap() const

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
bool useMipMap = texture->GetUseMipmap();

GetWrapMode

Get texture wrap mode.

WrapMode GetWrapMode() const

Code sample:

std::shared_ptr<Texture> texture; // Filled variable
WrapMode wrapMode = texture->GetWrapMode();

SetData

Set texture data.
Can be called multiple times.

virtual void SetData(const unsigned char* data) = 0

Code sample:

size_t width = 128;
size_t height = 128;
unsigned char* rawData = new unsigned char[width * height * 4];

struct Pixel
{
    uint8_t r;
    uint8_t g;
    uint8_t b;
    uint8_t a;
};

// Create a noise texture
for (size_t y = 0; y < height; y++)
{
    for (size_t x = 0; x < width; x++)
    {
        Pixel& pixel = reinterpret_cast<Pixel*>(rawData)[x + (y * width)];
        pixel.r = rand() % 255;
        pixel.g = rand() % 255;
        pixel.b = rand() % 255;
        pixel.a = 255;
    }
}

TextureConstructorParams params;
params.width = width;
params.height = height;
params.filter = Filter::Bilinear;
params.wrapMode = WrapMode::Repeat;
params.pspTextureType = PSPTextureType::RGBA_4444;
params.ps3TextureType = PS3TextureType::ARGB_4444;
params.hasAlpha = true;

std::shared_ptr<Material> material; // Filled variable
std::shared_ptr<Texture> newTexture = Texture::CreateTexture(params);
newTexture->SetData(rawData);
material->SetTexture(newTexture);

delete[] rawData;

Filter Enum

Add this in your code:

#include <engine/graphics/texture.h>

Description

Enum to define how a texture should be filtered.

Values

TextureResolution Enum

Add this in your code:

#include <engine/graphics/texture.h>

Description

Enum to set the maximum resolution of the texture.

Values

WrapMode Enum

Add this in your code:

#include <engine/graphics/texture.h>

Description

Enum that defines how texture coordinates outside the [0, 1] range are handled when sampling a texture.

Values

PSPTextureType Enum

Add this in your code:

#include <engine/graphics/texture.h>

Description

Enum that specifies the pixel format used for textures on the PSP, defining how color data is stored.

Values

PS3TextureType Enum

Add this in your code:

#include <engine/graphics/texture.h>

Description

Enum that specifies the pixel format used for textures on the PS3, defining how color data is stored.

Values

Color

Add this in your code:

#include <engine/graphics/color/color.h>

Description

This class stores information about a color.

Static methods

CreateFromRGB

Create a color from 3 uint8_t (alpha = 255).

Parameters:

• r: Red level [0;255]
• g: Green level [0;255]
• b: Blue level [0;255]

Color CreateFromRGB(uint8_t r, uint8_t g, uint8_t b)

Code sample:

Color red = Color::CreateFromRGB(255, 0, 0);

CreateFromRGBA

Create a color from 4 uint8_t.

Parameters:

• r: Red level [0;255]
• g: Green level [0;255]
• b: Blue level [0;255]
• a: Alpha level [0;255]

Color CreateFromRGBA(uint8_t r, uint8_t g, uint8_t b, uint8_t a)

Code sample:

Color semiTransparentRed = Color::CreateFromRGBA(255, 0, 0, 128);

CreateFromRGBFloat

Create a color from 3 floats (alpha = 1).

Parameters:

• r: Red level [0.0f;1.0f]
• g: Green level [0.0f;1.0f]
• b: Blue level [0.0f;1.0f]

Color CreateFromRGBFloat(float r, float g, float b)

Code sample:

Color red = Color::CreateFromRGBFloat(1.0f, 0.0f, 0.0f);

CreateFromRGBAFloat

Create a color from 4 floats.

Parameters:

• r: Red level [0.0f;1.0f]
• g: Green level [0.0f;1.0f]
• b: Blue level [0.0f;1.0f]
• a: Alpha level [0.0f;1.0f]

Color CreateFromRGBAFloat(float r, float g, float b, float a)

Code sample:

Color semiTransparentRed = Color::CreateFromRGBAFloat(1.0f, 0.0f, 0.0f, 0.5f);

Public methods

SetFromRGBA

Set color from 4 uint8_t.

Parameters:

• r: Red level [0;255]
• g: Green level [0;255]
• b: Blue level [0;255]
• a: Alpha level [0;255]

Color SetFromRGBA(uint8_t r, uint8_t g, uint8_t b, uint8_t a)

Code sample:

Color myColor = Color();
myColor.SetFromRGBA(255, 0, 0, 128);
myColor.SetFromRGBA(255, 255, 255, 255);

SetFromRGBAFloat

Set color from 4 float.

Parameters:

• r: Red level [0.0f;1.0f]
• g: Green level [0.0f;1.0f]
• b: Blue level [0.0f;1.0f]
• a: Alpha level [0.0f;1.0f]

Color SetFromRGBAFloat(float r, float g, float b, float a)

Code sample:

Color myColor = Color();
myColor.SetFromRGBAFloat(1.0f, 0, 0, 0.5f);
myColor.SetFromRGBAFloat(1.0f, 1.0f, 1.0f, 1.0f);

GetRGBA

Get RGBA.

const RGBA& GetRGBA() const

Code sample:

Color red = Color::CreateFromRGBFloat(1.0f, 0.0f, 0.0f);
RGBA rgba = red.GetRGBA();
const RGBA& rgbaRef = red.GetRGBA(); // Avoid a copy

GetUnsignedIntRGBA

Get RGBA values as an unsigned int in the format RGBA (0xRRGGBBAA).

unsigned int GetUnsignedIntRGBA() const

Code sample:

Color myColor = Color::CreateFromRGBAFloat(1.0f, 0.6f, 0.3f, 0.1f);
unsigned int rgba = myColor.GetUnsignedIntRGBA(); // 0xff994c19

GetUnsignedIntABGR

Get RGBA values as an unsigned int in the format ABGR (0xAABBGGRR).

unsigned int GetUnsignedIntABGR() const

Code sample:

Color myColor = Color::CreateFromRGBAFloat(1.0f, 0.6f, 0.3f, 0.1f);
unsigned int abgr = myColor.GetUnsignedIntABGR(); // 0x194c99ff

GetUnsignedIntARGB

Get RGBA values as an unsigned int in the format ARGB (0xAARRGGBB).

unsigned int GetUnsignedIntARGB() const

Code sample:

Color myColor = Color::CreateFromRGBAFloat(1.0f, 0.6f, 0.3f, 0.1f);
unsigned int argb = myColor.GetUnsignedIntARGB(); // 0x19ff994c

ToString

Return a string representation of the color.

std::string ToString() const

Code sample:

Color myColor = Color::CreateFromRGBAFloat(1.0f, 0.6f, 0.3f, 0.1f);
Debug::Print(myColor.ToString());
// Prints: "{R:1 G:0.6 B:0.3 A:0.1 | RGBA Hex:#ff994c19 | ARGB Hex:#19ff994c | ABGR Hex:#194c99ff}"

RGBA

Add this in your code:

#include <engine/graphics/color/color.h>

Description

This class stores information about a color.

Constructors

RGBA

Parameters:

• r: Red level [0.0f;1.0f]
• g: Green level [0.0f;1.0f]
• b: Blue level [0.0f;1.0f]
• a: Alpha level [0.0f;1.0f]

constexpr RGBA(float r, float g, float b, float a)

Code sample:

RGBA myRGBA = RGBA(1.0f, 0.6f, 0.3f, 0.1f);

Public methods

ToVector4

Get RGBA as a Vector4 [0.0f;1.0f] x = red, y = green, z = blue, w = alpha.

Vector4 ToVector4() const

Code sample:

RGBA myRGBA = RGBA(1.0f, 0.6f, 0.3f, 0.1f);
Vector4 rgbaAsVector4 = myRGBA.ToVector4();

Variables

Components

Here is a list of all components of the game engine.

• Component: The component class gives you a list of function that you can override in your components.
• AudioSource: Component to play audio clips.
• BillboardRenderer: Component to render a billboard sprite (2D sprite that always faces the camera).
• BoxCollider: Component to add a cube-shaped collider to a GameObject.
• Button: Component that renders a button on the screen.
• Camera: Component for rendering the scene.
• Canvas: Component to render a canvas (UI elements).
• FpsCounter: Component to display the FPS counter in the game.
• ImageRenderer: Component that renders an image on the screen.
• Light: Component to produce light.
• Lod: Component to manage Level of Detail (LOD) for a GameObject.
• MeshRenderer: Component that renders a mesh with materials.
• MissingScript: Special Component that replaces missing components.
• ParticleSystem: Component to spawn particles.
• RectTransform: Component that represents a transform for UI elements.
• Rigidbody: Component to add physics to the GameObject.
• SphereCollider: Component to add a sphere-shaped collider to a GameObject.
• SpriteRenderer: Component that renders a sprite with a texture and material.
• TextMesh: Component for rendering text in 3D space.
• TextRenderer: Component for rendering text in a canvas.

Component

Add this in your code:

#include <engine/component.h>

Description

The component class gives you a list of function that you can override in your components.

Protected variables

Virtual methods

Awake

This function is called once before Start() at the creation of the component.

The engine calls the function when:

• The parent GameObject is active when a scene just loaded
• The parent GameObject goes from inactive to active

The parent GameObject and the component should be enabled.

virtual void Awake()

Code sample:

class API MyComponent : public Component
{
public:
    void Awake() override
    {
        Debug::Print("Awake called!");
    }
}

Start

This function is called once after Awake() at the creation of the component.

The engine calls the function when:

• The parent GameObject is active when a scene just loaded
• The parent GameObject goes from inactive to active

The parent GameObject and the component should be enabled.

virtual void Start()

Code sample:

class API MyComponent : public Component
{
public:
    void Start() override
    {
        Debug::Print("Start called!");
    }
}

Update

This function called every frame.

The parent GameObject and the component should be enabled.

virtual void Update()

Code sample:

class API MyComponent : public Component
{
public:
    void Update() override
    {
        Debug::Print("Update called!");
    }
}

OnComponentAttached

This function called when a component is attached to a component.
It's usefull when you need to setup the component before the Awake being called with an access to the parent GameObject.
This function is called even if the GameObject or the component are disabled compared to the Awake method.
In the constructor of your component if the component you can't get a reference to the parent GameObject.

virtual void OnComponentAttached()

Code sample:

class API MyComponent : public Component
{
public:
    void OnTransformPositionUpdated();

    void OnComponentAttached() override
    {
        GetTransformRaw()->GetOnTransformUpdated().Bind(&MyComponent::OnTransformPositionUpdated, this);
    }
}

OnDisabled

This function called when a component is disabled.

virtual void OnDisabled()

Code sample:

class API MyComponent : public Component
{
public:
    void OnDisabled() override
    {
        Debug::Print("Component disabled!");
    }
}

OnEnabled

This function called when a component is enabled.

virtual void OnEnabled()

Code sample:

class API MyComponent : public Component
{
public:
    void OnEnabled() override
    {
        Debug::Print("Component enabled!");
    }
}

OnDrawGizmos

Called each frame to draw gizmos.

The parent GameObject and the component should be enabled.

virtual void OnDrawGizmos()

Code sample:

class API MyComponent : public Component
{
public:
    void OnDrawGizmos() override
    {
#if defined(EDITOR)
        Gizmo::DrawLine(Vector3(0, 0, 0), Vector3(1, 1, 1));
#endif
    }
}

OnDrawGizmosSelected

Called each frame to draw gizmos if the object is selected.

The parent GameObject and the component should be enabled.

virtual void OnDrawGizmosSelected()

Code sample:

class API MyComponent : public Component
{
public:
    void OnDrawGizmosSelected() override
    {
#if defined(EDITOR)
        Gizmo::DrawLine(Vector3(0, 0, 0), Vector3(1, 1, 1));
#endif
    }
}

ToString

Return a string representation of the component.

virtual std::string ToString()

Code sample:

class API MyComponent : public Component
{
public:
    std::string ToString() override
    {
        return "{" + *m_componentName + ", Value: " + std::to_string(value) + "}";
    }

private:
    int value = 2;
}

OnCollisionEnter

Function called when a collision has just occured with another collider.

Parameters:

• info: information about the collision

virtual void OnCollisionEnter(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnCollisionEnter(CollisionEvent info) override
    {
        Debug::Print("I just hit something!");
    }
}

OnCollisionStay

Function called every frame if a collider of the GameObject is still colliding with another collider.

Parameters:

• info: information about the collision

virtual void OnCollisionStay(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnCollisionStay(CollisionEvent info) override
    {
        Debug::Print("I'm still colliding with something!");
    }
}

OnCollisionExit

Function called when the collision has ended.

Parameters:

• info: information about the collision

virtual void OnCollisionExit(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnCollisionExit(CollisionEvent info) override
    {
        Debug::Print("I'm not colliding with something anymore!");
    }
}

OnTriggerEnter

Function called when a collider of the GameObject just entered a trigger collider.

Parameters:

• info: information about the collision

virtual void OnTriggerEnter(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnTriggerEnter(CollisionEvent info) override
    {
        Debug::Print("I just entered in a trigger!");
    }
}

OnTriggerStay

Function called when a collider of the GameObject is still in a trigger collider.

Parameters:

• info: information about the collision

virtual void OnTriggerStay(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnTriggerStay(CollisionEvent info) override
    {
        Debug::Print("I'm still in a trigger!");
    }
}

OnTriggerExit

Function called when a collider of the GameObject just leave a trigger collider.

Parameters:

• info: information about the collision

virtual void OnTriggerExit(CollisionEvent info)

Code sample:

class API MyComponent : public Component
{
public:
    void OnTriggerExit(CollisionEvent info) override
    {
        Debug::Print("I'm not in a trigger anymore!");
    }
}

Public methods

IsEnabled

Get if the component is enabled.

bool IsEnabled() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
component->SetIsEnabled(false);
bool isEnabled = component->IsEnabled(); // = false

SetIsEnabled

Enable or disable the component.

Parameters:

• isEnabled: true to enable, false to disable

void SetIsEnabled(bool isEnabled)

Code sample:

std::shared_ptr<Component> component; // Filled variable
component->SetIsEnabled(false);
bool isEnabled = component->IsLocalActive(); // = false

GetGameObject

Get component's GameObject.

std::shared_ptr <GameObject> GetGameObject() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
std::shared_ptr<GameObject> gameObject = component->GetGameObject();

GetGameObjectRaw

Get component's GameObject raw pointer for faster access (Not safe, use with caution).

GameObject* GetGameObjectRaw() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
GameObject* gameObject = component->GetGameObjectRaw();

GetTransform

Get component's Transform.

std::shared_ptr<Transform> GetTransform() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
std::shared_ptr<Transform> transform = component->GetTransform();

GetTransformRaw

Get component's Transform raw pointer for faster access (Not safe, use with caution).

Transform* GetTransformRaw() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
Transform* transform = component->GetTransformRaw();

GetComponentName

Get component's name.

const std::string& GetComponentName() const

Code sample:

std::shared_ptr<Component> component; // Filled variable
const std::string& name = component->GetComponentName();

AudioSource

Add this in your code:

#include <engine/audio/audio_source.h>

Description

Component to play audio clips.

Public methods

Play

Play audio.

void Play()

Resume

Resume audio.

void Resume()

Pause

Pause audio.

void Pause()

Stop

Stop audio.

void Stop()

SetVolume

Set volume.

Parameters:

• volume: New volume value

void SetVolume(float volume)

SetPanning

Set panning.

Parameters:

• panning: New panning value

void SetPanning(float panning)

SetPanning

Set is looping.

Parameters:

• isLooping: New is looping value

void SetLoop(bool isLooping)

GetVolume

Get volume.

float GetVolume() const

GetPanning

Get panning.

float GetPanning() const

IsPlaying

Get is playing.

bool IsPlaying() const

IsLooping

Get is looping.

bool IsLooping() const

GetAudioClip

Get audio clip.

const std::shared_ptr<AudioClip>& GetAudioClip()

SetAudioClip

Set audio clip.

void SetAudioClip(const std::shared_ptr<AudioClip>& audioClip)

BillboardRenderer

Add this in your code:

#include <engine/graphics/2d_graphics/billboard_renderer.h>

Description

Component to render a billboard sprite (2D sprite that always faces the camera).

Public methods

GetColor

Get the color of the sprite.

const Color& GetColor() const

SetColor

Set the color of the sprite.

Parameters:

• Color: New sprite color

void SetColor(const Color& color)

GetMaterial

Get the material of the sprite.

const std::shared_ptr<Material>& GetMaterial()

SetMaterial

Set the material of the sprite.

Parameters:

• material: New sprite material

void SetMaterial(const std::shared_ptr<Material>& material)

GetTexture

Get the texture of the sprite.

const std::shared_ptr<Texture>& GetTexture()

SetTexture

Set the texture of the sprite.

Parameters:

• texture: New sprite texture

void SetTexture(const std::shared_ptr<Texture>& texture)

BoxCollider

Add this in your code:

#include <engine/physics/box_collider.h>

Description

Component to add a cube-shaped collider to a GameObject.

Public methods

SetSize

Set the size of the box collider.

Parameters:

• size: New size value

void SetSize(const Vector3& size)

SetOffset

Set the offset position of the box collider.

Parameters:

• offset: New offset value

void SetOffset(const Vector3& offset)

GetSize

Get the size of the box collider.

const Vector3& GetSize() const

GetOffset

Get the offset position of the box collider.

const Vector3& GetOffset() const

ToString

Get the size and offset of the box collider in the form of a string.

std::string ToString()

Button

Add this in your code:

#include <engine/graphics/ui/button.h>

Description

Component that renders a button on the screen.

Variables

Public methods

GetOrderInLayer

Get the order in layer, higher number, higher priority.

int GetOrderInLayer() const

SetOrderInLayer

Set the order in layer.

Parameters:

• orderInLayer: Order in layer, higher number, higher priority

void SetOrderInLayer(int orderInLayer)

GetImage

Get the image.

const std::shared_ptr<Texture>& GetImage() const

SetImage

Set the image.

Parameters:

• image: Image to use

void SetImage(const std::shared_ptr<Texture>& image)

GetOnClickEvent

Get the onClick event, called when the user clicks on the button.

Event<>& GetOnClickEvent()

Code sample:

class MyClass
{
public:
    void OnClick() { }
};

std::shared_ptr<Button> button; // Filled variable
MyClass myClassInstance = MyClass();

button->GetOnClickEvent().Bind(&MyClass::MyStaticFunction, &myClassInstance);

Camera

Add this in your code:

#include <engine/graphics/camera.h>

Description

Component for rendering the scene.

Public methods

SetFov

Set field of view (Perspective mode).

Parameters:

• fov: Field of view angle (in degrees)

void SetFov(const float fov)

GetFov

Get field of view in degrees.

float GetFov() const

SetProjectionSize

Set projection size (Orthographic mode).

Parameters:

• value: Projection size

void SetProjectionSize(const float value)

GetProjectionSize

Get projection size.

float GetProjectionSize() const

SetNearClippingPlane

Set near clipping plane.

Parameters:

• value: Near clipping plane

void SetNearClippingPlane(float value)

GetNearClippingPlane

Get near clipping plane.

float GetNearClippingPlane() const

SetFarClippingPlane

Set far clipping plane.

Parameters:

• value: far clipping plane

void SetFarClippingPlane(float value)

GetFarClippingPlane

Get far clipping plane.

float GetFarClippingPlane() const

ScreenTo2DWorld

Get 2D world position from pixel coordinate.

Parameters:

• x: X pixel position
• y: Y pixel position

Vector2 ScreenTo2DWorld(int x, int y)

MouseTo2DWorld

Get 2D world position from mouse's position.

ector2 MouseTo2DWorld()

SetProjectionType

Set projection type.

Parameters:

• type: Projection type

void SetProjectionType(const ProjectionType type)

GetProjectionType

Get projection type.

ProjectionType GetProjectionType() const

GetMouseRay

Get mouse normalized ray direction.

Vector3 GetMouseRay()

GetWidth

Get view width in pixel.

int GetWidth() const

GetHeight

Get view height in pixel.

int GetHeight() const

GetAspectRatio

Get view aspect ratio.

float GetAspectRatio() const

GetUseMultisampling

Get if the camera is using multisampling (Windows Only).

bool GetUseMultisampling() const

SetUseMultisampling

Set if the camera is using multisampling (Windows Only).

Parameters:

• useMultisampling: True to enable Multisampling

void SetUseMultisampling(bool useMultisampling)

GetRawFrameBuffer

Get a copy of the frame buffer.
Heavy operation, use with caution.

std::unique_ptr<uint8_t[]> GetRawFrameBuffer()

ProjectionType Enum

Add this in your code:

#include <engine/graphics/camera_projection_type.h>

Description

Enum to list every camera projection types.

Values

Canvas

Add this in your code:

#include <engine/graphics/ui/canvas.h>

Description

Component to render a canvas (UI elements).

FpsCounter

Add this in your code:

#include <engine/tool/fps_counter.h>

Description

Component to display the FPS counter in the game.

Variables

Public methods

GetTextRenderer

Get the text renderer used for displaying the FPS.

const std::weak_ptr<TextRenderer>& GetTextRenderer()

SetTextRenderer

Set the text renderer to use for displaying the FPS.

Parameters:

• textRenderer: True to enable Multisampling

void SetTextRenderer(const std::shared_ptr<TextRenderer>& textRenderer)

ImageRenderer

Add this in your code:

#include <engine/graphics/ui/image_renderer.h>

Description

Component that renders an image on the screen.

Variables

Public methods

GetImage

Get the image.

const std::shared_ptr<Texture>& GetImage() const

SetImage

Set the image.

Parameters:

• image: Image to use

void SetImage(const std::shared_ptr<Texture>& image)

Light

Add this in your code:

#include <engine/lighting/lighting.h>

Description

Component to produce light.

Variables

Public methods

SetupPointLight

Setup the light as a point light.

Parameters:

• color: Light color
• intensity: Light intensity
• range: Light Range (Greater or equals to 0)

void SetupPointLight(const Color& color, float intensity, const float range)

SetupDirectionalLight

Setup the light as a directional light.

Parameters:

• color: Light color
• intensity: Light intensity

void SetupDirectionalLight(const Color& color, float intensity)

SetupAmbientLight

Setup the light as an ambient light.

Parameters:

• color: Light color
• intensity: Light intensity

void SetupAmbientLight(const Color& color, const float intensity)

SetupSpotLight

Setup the light as a spot light.

Parameters:

• color: Light color
• intensity: Light intensity
• range: Light Range (Greater or equals to 0)
• angle: Spot angle [0;90]

void SetupSpotLight(const Color& color, const float intensity, const float range, const float angle)

SetupSpotLight

Setup the light as a spot light.

Parameters:

• color: Light color
• intensity: Light intensity
• range: Light Range (Greater or equals to 0)
• angle: Spot angle [0;90]
• smoothness: Spot smoothness [0;1]

void SetupSpotLight(const Color& color, const float intensity, const float range, const float angle, const float smoothness)

SetupSpotLight

Set light range.

Parameters:

• value: Light range (Greater or equals to 0)

void SetRange(float value)

SetSpotAngle

Set spot angle.

Parameters:

• value: Spot angle [0;90]

void SetSpotAngle(float angle)

SetSpotSmoothness

Set spot smoothness.

Parameters:

• value: Spot smoothness [0;1]

void SetSpotSmoothness(float smoothness)

GetType

Get light type.

LightType GetType() const

GetType

Set light type.

Parameters:

• type: Light type

void SetType(LightType type)

GetIntensity

Get light intensity.

float GetIntensity() const

SetIntensity

Set light intensity.

Parameters:

• intensity: Light intensity

void SetIntensity(float intensity)

GetOldConsoleCompatibility

Get if the light should simulate lighting from old consoles (To get the same behavior as PSP)y.

bool GetOldConsoleCompatibility() const

SetOldConsoleCompatibility

Set if the light should simulate lighting from old consoles (To get the same behavior as PSP).

Parameters:

• value: New value

void SetOldConsoleCompatibility(bool value)

Lod

Add this in your code:

#include <engine/graphics/3d_graphics/lod.h>

Description

Component to manage Level of Detail (LOD) for a GameObject.

MeshRenderer

Add this in your code:

#include <engine/graphics/3d_graphics/mesh_renderer.h>

Description

Component that renders a mesh with materials.

Public methods

GetMeshData

Get mesh data.

const std::shared_ptr<MeshData>& GetMeshData() const

SetMeshData

Set mesh data.

Parameters:

• meshData: Mesh data to use

void SetMeshData(const std::shared_ptr <MeshData>& meshData)

GetMaterials

Get materials list.

std::vector<std::shared_ptr<Material>> GetMaterials() const

GetMaterial

Get a material at a specific index.

Parameters:

• index: Index of the material

std::shared_ptr<Material> GetMaterial(int index) const

SetMeshData

Set a material at a specific index.

Parameters:

• material: Material to use
• index: Index of the material

void SetMaterial(const std::shared_ptr <Material>& material, int index)

GetBoundingSphere

Get the bounding sphere of the mesh.

const Sphere& GetBoundingSphere() const

GetUseAdvancedLighting

Get if the mesh can use advanced lighting (point lights, spot lights), improve performance if disabled.

bool GetUseAdvancedLighting() const

SetUseAdvancedLighting

Set if the mesh can use advanced lighting (point lights, spot lights), improve performance if disabled.

Parameters:

• value: Enable advanced lighting?

void SetUseAdvancedLighting(bool value)

MissingScript

Description

Special component used when a script is not found. It stores data of the previous working component to avoid data loss when saving the scene. The user cannot instantiate this component.

It's used when:

• A script has been deleted,
• A script has been renamed,
• The game is not compiled.

ParticleSystem

Add this in your code:

#include <engine/particle_system/particle_system.h>

Description

Component to spawn particles.

Public methods

Play

Emitte all particles when not in loop mode.

void Play()

ResetParticles

Remove all particles and restart the emission.

void ResetParticles()

IsEmitting

Get if the particle system is emitting particles.

bool IsEmitting() const

SetIsEmitting

Set if the particle system is emitting particles.

Parameters:

• isEmitting: Light color

void SetIsEmitting(bool isEmitting)

GetSpawnRate

Get the particle spawn rate.

float GetSpawnRate() const

SetIsEmitting

Set the particle spawn rate.

Parameters:

• spawnRate: Number of particules per seconds

void SetSpawnRate(float spawnRate)

SetScaleOverLifeTimeFunction

Set you own function to set the global scale of the particle over its life time.
The function takes the life time ratio [0;1] and return the scale of the particle.

Parameters:

• function: function The function to set, should be static (nullptr to use the default function)

void SetScaleOverLifeTimeFunction(float (*function)(float))

Code sample:

float GetScaleOverLifeTime(float lifeTime)
{
	return std::sin(lifeTime * Math::PI); // Default function in every particle systems
}

std::shared_ptr<ParticleSystem> particleSystem;
particleSystem->SetScaleOverLifeTimeFunction(&GetScaleOverLifeTime);

SetSpeedMultiplierOverLifeTimeFunction

Set you own function to set the speed multiplier of the particle over its life time.
The function takes the life time ratio [0;1] and return the speed multiplier of the particle.

Parameters:

• function: function The function to set, should be static (nullptr to use the default function)

void SetSpeedMultiplierOverLifeTimeFunction(float (*function)(float))

Code sample:

float GetSpeedOverLifeTime(float lifeTime)
{
	return 1; // Default function in every particle systems
}

std::shared_ptr<ParticleSystem> particleSystem;
particleSystem->SetScaleOverLifeTimeFunction(&GetSpeedOverLifeTime);

SetColorOverLifeTimeFunction

Set you own function to set the color of the particle over its life time.
The function takes the life time ratio [0;1] and return the color of the particle.
x = red, y = green, z = blue, w = alpha (0 to 1).

Parameters:

• function: function The function to set, should be static (nullptr to use the default function)

void SetColorOverLifeTimeFunction(Vector4 (*function)(float))

Code sample:

Vector4 GetColorOverLifeTime(float lifeTime)
{
	return Vector4(1, 1, 1, std::sin(lifeTime * Math::PI)); // Default function in every particle systems
}

std::shared_ptr<ParticleSystem> particleSystem;
particleSystem->SetScaleOverLifeTimeFunction(&GetColorOverLifeTime);

RectTransform

Add this in your code:

#include <engine/game_elements/rect_transform.h>

Description

Component that represents a transform for UI elements.

Variables

RigidBody

Add this in your code:

#include <engine/physics/rigidbody.h>

Description

Component to add physics to the GameObject.

Public Methods

GetVelocity

Get the velocity.

const Vector3& GetVelocity() const

SetVelocity

Set the velocity.

Parameters:

• velocity: New velocity

void SetVelocity(const Vector3& velocity)

GetTorque

Get the torque applied to the rigidbody.

Vector3 GetTorque() const

ApplyTorque

Apply torque.

Parameters:

• torque: Torque to apply

void ApplyTorque(const Vector3& torque)

GetAngularVelocity

Get the angular velocity.

Vector3 GetAngularVelocity() const

SetAngularVelocity

Set the angular velocity.

Parameters:

• angularVelocity: Angular velocity to set

void SetAngularVelocity(const Vector3& angularVelocity)

AddAngularVelocity

Add angular velocity.

Parameters:

• angularVelocity: Angular velocity to add

void AddAngularVelocity(const Vector3& angularVelocity)

GetDrag

Get the drag value.

float GetDrag() const

SetDrag

Set the drag value.

Parameters:

• drag: Drag value to set

void SetDrag(float drag)

GetAngularDrag

Get the angular drag value.

float GetAngularDrag() const

SetAngularDrag

Set the angular drag value.

Parameters:

• angularDrag: Angular drag value to set

void SetAngularDrag(float angularDrag)

GetBounce

Get the bounce value.

float GetBounce() const

SetBounce

Set the bounce value.

Parameters:

• bounce: Bounce value to set

void SetBounce(float bounce)

GetGravityMultiplier

Get the gravity multiplier.

float GetGravityMultiplier() const

SetGravityMultiplier

Set the gravity multiplier.

Parameters:

• gravityMultiplier: Gravity multiplier value to set

void SetGravityMultiplier(float gravityMultiplier)

IsStatic

Get if the rigidbody is static.

float IsStatic() const

SetIsStatic

Set if the rigidbody is static.

Parameters:

• isStatic: Is static value to set

void SetIsStatic(float isStatic)

GetMass

Get the mass of the rigidbody.

float GetMass() const

SetMass

Set the mass of the rigidbody.

Parameters:

• mass: Mass value to set

void SetMass(float mass)

GetFriction

Get the friction value.

float GetFriction() const

SetFriction

Set the friction value.

Parameters:

• friction: Friction value to set

void SetFriction(float friction)

Activate

Activate the rigidbody (used to wake up the rigidbody if it was sleeping).

void Activate()

GetLockedMovementAxis

Get locked movement axis.

const LockedAxis& GetLockedMovementAxis() const

SetLockedMovementAxis

Set locked movement axis.

Parameters:

• axis: Axis to lock

void SetLockedMovementAxis(LockedAxis axis)

GetLockedMovementAxis

Get locked rotation axis.

const LockedAxis& GetLockedRotationAxis() const

SetLockedMovementAxis

Set locked rotation axis.

Parameters:

• axis: Axis to lock

void SetLockedMovementAxis(LockedAxis axis)

SphereCollider

Add this in your code:

#include <engine/physics/sphere_collider.h>

Description

Component to add a sphere-shaped collider to a GameObject.

Public Methods

GetSize

Get the radius of the sphere collider.

float GetSize() const

SetSize

Set the radius of the sphere collider.

Parameters:

• size: Radius of the sphere

void SetSize(float size)

GetOffset

Get the offset position of the sphere collider.

const Vector3& GetOffset() const

SetOffset

Set the offset position of the sphere collider.

Parameters:

• offset: Offset position of the sphere

void SetOffset(const Vector3& offset)

SpriteRenderer

Add this in your code:

#include <engine/graphics/2d_graphics/sprite_renderer.h>

Description

Component that renders a sprite with a texture and material.

Public Methods

GetColor

Get the color of the sprite.

const Color& GetColor() const

SetColor

Set the color of the sprite.

Parameters:

• color: New color

void SetColor(const Color& color)

GetMaterial

Get the material of the sprite.

const std::shared_ptr<Material>& GetMaterial() const

SetMaterial

Set the material of the sprite.

Parameters:

• material: New material

void SetMaterial(const std::shared_ptr<Material>& material)

GetTexture

Get the texture of the sprite.

const std::shared_ptr<Texture>& GetTexture() const

SetTexture

Set the texture of the sprite.

Parameters:

• texture: New texture

void SetTexture(const std::shared_ptr<Texture>& texture)

TextMesh

Add this in your code:

#include <engine/graphics/ui/text_mesh.h>

Description

Component for rendering text in 3D space.

Public methods

GetOrderInLayer

Get the order in layer, higher number, higher priority.

int GetOrderInLayer() const

SetOrderInLayer

Set the order in layer.

Parameters:

• orderInLayer: Order in layer, higher number, higher priority

void SetOrderInLayer(int orderInLayer)

GetColor

Get the color of the sprite.

const Color& GetColor() const

SetColor

Set the color of the sprite.

Parameters:

• Color: New sprite color

void SetColor(const Color& color)

GetText

Get text.

const std::string& GetText() const

SetText

Set text.

Parameters:

• text: New text

void SetText(const std::string& text)

GetFont

Get text font.

const std::shared_ptr<Font>& GetFont() const

SetFont

Set text font.

Parameters:

• font: New font

void SetFont(const std::shared_ptr<Font>& font)

GetMaterial

Get the material of the sprite.

const std::shared_ptr<Material>& GetMaterial()

SetMaterial

Set the material of the sprite.

Parameters:

• material: New sprite material

void SetMaterial(const std::shared_ptr<Material>& material)

GetFontSize

Get the font size.

float GetFontSize() const

SetFontSize

Set the font size.

Parameters:

• fontSize: New font size

void SetFontSize(float fontSize)

GetLineSpacing

Get the line spacing.

float GetLineSpacing() const

SetLineSpacing

Set the line spacing.

Parameters:

• lineSpacing: New line spacing

void SetLineSpacing(float lineSpacing)

GetCharacterSpacing

Get the character spacing.

float GetCharacterSpacing() const

SetCharacterSpacing

Set the character spacing.

Parameters:

• characterSpacing: New character spacing

void SetCharacterSpacing(float characterSpacing)

GetVerticalAlignment

Get the vertical alignment.

VerticalAlignment GetVerticalAlignment() const

SetVerticalAlignment

Set the vertical alignment.

Parameters:

• verticalAlignment: New vertical alignment

void SetVerticalAlignment(VerticalAlignment verticalAlignment)

GetHorizontalAlignment

Get the horizontal alignment.

HorizontalAlignment GetHorizontalAlignment() const

SetHorizontalAlignment

Set the horizontal alignment.

Parameters:

• horizontalAlignment: New horizontal alignment

void SetHorizontalAlignment(HorizontalAlignment horizontalAlignment)

TextRenderer

Add this in your code:

#include <engine/graphics/ui/text_renderer.h>

Description

Component for rendering text in a canvas.

Public methods

GetOrderInLayer

Get the order in layer, higher number, higher priority.

int GetOrderInLayer() const

SetOrderInLayer

Set the order in layer.

Parameters:

• orderInLayer: Order in layer, higher number, higher priority

void SetOrderInLayer(int orderInLayer)

GetColor

Get the color of the sprite.

const Color& GetColor() const

SetColor

Set the color of the sprite.

Parameters:

• Color: New sprite color

void SetColor(const Color& color)

GetText

Get text.

const std::string& GetText() const

SetText

Set text.

Parameters:

• text: New text

void SetText(const std::string& text)

GetFont

Get text font.

const std::shared_ptr<Font>& GetFont() const

SetFont

Set text font.

Parameters:

• font: New font

void SetFont(const std::shared_ptr<Font>& font)

GetMaterial

Get the material of the sprite.

const std::shared_ptr<Material>& GetMaterial()

SetMaterial

Set the material of the sprite.

Parameters:

• material: New sprite material

void SetMaterial(const std::shared_ptr<Material>& material)

GetFontSize

Get the font size.

float GetFontSize() const

SetFontSize

Set the font size.

Parameters:

• fontSize: New font size

void SetFontSize(float fontSize)

GetLineSpacing

Get the line spacing.

float GetLineSpacing() const

SetLineSpacing

Set the line spacing.

Parameters:

• lineSpacing: New line spacing

void SetLineSpacing(float lineSpacing)

GetCharacterSpacing

Get the character spacing.

float GetCharacterSpacing() const

SetCharacterSpacing

Set the character spacing.

Parameters:

• characterSpacing: New character spacing

void SetCharacterSpacing(float characterSpacing)

GetVerticalAlignment

Get the vertical alignment.

VerticalAlignment GetVerticalAlignment() const

SetVerticalAlignment

Set the vertical alignment.

Parameters:

• verticalAlignment: New vertical alignment

void SetVerticalAlignment(VerticalAlignment verticalAlignment)

GetHorizontalAlignment

Get the horizontal alignment.

HorizontalAlignment GetHorizontalAlignment() const

SetHorizontalAlignment

Set the horizontal alignment.

Parameters:

• horizontalAlignment: New horizontal alignment

void SetHorizontalAlignment(HorizontalAlignment horizontalAlignment)

DateTime

Add this in your code:

#include <engine/time/date_time.h>

This class represents an instant in time.

Static methods

GetNow

Get the current date and time.

DateTime GetNow()

Code sample:

DateTime currentDateTime = DateTime::GetNow();

Public methods

ToString

Get a string representation of the date and time in the format: "hour:minute:second day/month/year".

std::string ToString() const

Code sample:

DateTime currentDateTime = DateTime::GetNow();
Debug::Print(currentDateTime.ToString());
// Prints: "12:49:53 31/5/2025"

Variables

Debug

Add this in your code:

#include <engine/debug/debug.h>

Description

Class used to print text in the console and in file or remotely to a server (Server part is removed for now).

You can find logs in the xenity_engine_debug.txt file.
The file will be created in the same folder of the executable file.
For PsVita the file will be created in ux0:data/xenity_engine/.

Static methods

Print

Print a text.

Parameters:

• text: Text to print
• hideInEditorConsole: If true, the text will not be printed in the editor's console

void Print(const std::string& text, bool hideInEditorConsole = false)

Code sample:

Debug::Print("Hello World!"); // Printed in both console and file

Debug::Print("Hello file!", true); // Only printed in the file

PrintWarning

Print a warning.

Parameters:

• text: Text to print
• hideInEditorConsole: If true, the text will not be printed in the editor's console

void PrintWarning(const std::string& text, bool hideInEditorConsole = false)

Code sample:

Debug::PrintWarning("I'm a warning.");

// Prints: "[WARNING] I'm a warning."

PrintError

Print an error.

Parameters:

• text: Text to print
• hideInEditorConsole: If true, the text will not be printed in the editor's console

void PrintError(const std::string& text, bool hideInEditorConsole = false)

Code sample:

Debug::PrintError("You can't do that!");

// Prints: "[ERROR] You can't do that!"

GetOnDebugLogEvent

Get the event when a debug message is printed.

Event<const std::string&, DebugType>& GetOnDebugLogEvent()

Code sample:

void OnLog(const std::string& text, DebugType debugType)
{
    // ...
}

Debug::GetOnDebugLogEvent().Bind(&OnLog);
Debug::PrintWarning("I'm a warning");
Debug::GetOnDebugLogEvent().Unbind(&OnLog);
// OnLog will be called with "I'm a warning" and DebugType::Warning as parameters

Enumerations

Add this in your code:

#include <engine/reflection/enum_utils.h>

If you want to create an enum visible by the editor inspector, you have to use Xenity's custom enums.

ENUM(MyEnum, Value0, Value1, Value2);

You can assigan values to each elements:

ENUM(MyEnum, Value0 = 1, Value1 = 3, Value2 = 8);

The type of value of an enum element is int.

You are allowed to create a classic C++ enum class, but you won't be able to use it in the inspector.

Event

Add this in your code:

#include <engine/event_system/event_system.h>

Description

This class gives the possibility to bind a function to an event.
When a event object is destroyed, all bound functions are unbound.

This class is using templates.

template<typename... Args>
class Event

Event without argument:

Event<> myEvent;

Event with arguments:

Event<int, const std::string&> myEvent;

Public methods

Bind

Bind a simple function.

Parameters:

• function: Pointer to the function to bind

void Bind(void(*function)(Args...))

Code sample:

void MyFunction(int a, const std::string& b) { }

class MyClass
{
public:
    static void MyStaticFunction(int a, const std::string& b) { }
};

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyFunction);
myEvent.Bind(&MyClass::MyStaticFunction);

Bind

Bind a function linked to an object.

Parameters:

• function: Pointer to the function to bind
• obj: Pointer to the object

template<typename ObjType>
void Bind(void(ObjType::* function)(Args...), ObjType* obj)

Code sample:

class MyClass
{
public:
    void MyFunction(int a, const std::string& b) { }
};

MyClass myClassInstance;

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyClass::MyFunction, &myClassInstance);

Unbind

Unbind a simple function.

Parameters:

• function: Pointer to the function to unbind

void Unbind(void(*function)(Args...))

Code sample:

void MyFunction(int a, const std::string& b) { }

class MyClass
{
public:
    static void MyStaticFunction(int a, const std::string& b) { }
};

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyFunction);
myEvent.Bind(&MyClass::MyStaticFunction);
//...
myEvent.Unbind(&MyFunction);
myEvent.Unbind(&MyClass::MyStaticFunction);

Unbind

Unbind a function linked to an object.

Parameters:

• function: Pointer to the function to unbind
• obj: Pointer to the object

template<typename ObjType>
void Unbind(void(ObjType::* function)(Args...), ObjType* obj)

Code sample:

class MyClass
{
public:
    void MyFunction(int a, const std::string& b) { }
};

MyClass myClassInstance;

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyClass::MyFunction, &myClassInstance);
//...
myEvent.Unbind(&MyClass::MyFunction, &myClassInstance);

UnbindAll

Unbind all bound function.

void UnbindAll()

Code sample:

void MyFunction(int a, const std::string b) { }

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyFunction);
//...
myEvent.UnbindAll();

Trigger

Call all bound functions.

Parameters:

• args: All arguments to send

void Trigger(Args... args)

Code sample:

void MyFunction(int a, const std::string b) { }

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyFunction);
myEvent.Trigger(1, "Hello World!");

GetBoundFunctionCount

Get the number of listener.

size_t GetBoundFunctionCount()

Code sample:

void MyFunction(int a, const std::string b) { }
void MyFunction2(int a, const std::string b) { }

Event<int, const std::string&> myEvent;
myEvent.Bind(&MyFunction);
myEvent.Bind(&MyFunction2);

size_t count = myEvent.GetBoundFunctionCount(); // count = 2

FileSystem

Add this in your code:

#include <engine/file_system/file_system.h>

Description

This class provides methods to manipulate files and directories.

Static methods

CreateFolder

Create a directory.
Create parents directories if they do not exist. Returns true on success.

Parameters:

• path: Path of the folder to create

bool CreateFolder(const std::string& path)

Code sample:

FileSystem::CreateFolder("C:/my_folder/");

Delete

Delete a file or a directory.

Parameters:

• path: Path of file or folder

void Delete(const std::string& path)

Code sample:

FileSystem::Delete("C:/my_folder/my_file.txt");
FileSystem::Delete("C:/my_folder/");

Rename

Rename a file or a directory (Not currently supported on PSP and PS3).
Returns true on success.

Parameters:

• path: File path to rename
• newPath: New file path (should be in the same directory)

bool Rename(const std::string& path, const std::string& newPath)

Code sample:

FileSystem::Rename(
    "C:/my_folder/my_file.txt",
    "C:/my_folder/my_renamed_file.txt");

CopyFile

Copy a file to a new path (Not currently supported on PS3).

Parameters:

• path: File path to copy
• newPath: File destination path
• replace: If true, replace the file if it already exists

CopyFileResult CopyFile(const std::string& path, const std::string& newPath, bool replace)

Code sample:

CopyFileResult result = FileSystem::CopyFile(
    "C:/my_folder/my_file.txt",
    "C:/my_folder/my_copied_file.txt"
    false); // Result is Success

// Do it again, this time the result will be "FileAlreadyExists"
CopyFileResult result = FileSystem::CopyFile(
    "C:/my_folder/my_file.txt",
    "C:/my_folder/my_copied_file.txt"
    false);

MakeFile

Create a File object from a path (Do not create the file on the system).

Parameters:

• path: File path (Relative or absolute)

std::shared_ptr<File> MakeFile(const std::string& path)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

if(file->Open(FileMode::WriteCreateFile))
{
    // File created thanks to the WriteCreateFile option
}

MakeDirectory

Create a Directory object from a path (Do not create the directory on the system).

Parameters:

• path: Directory path (Relative or absolute)

std::shared_ptr<Directory> MakeDirectory(const std::string& path)

Code sample:

std::shared_ptr<Directory> directory = FileSystem::MakeDirectory("C:/my_folder/");

ConvertWindowsPathToBasicPath

Converts all backslashes ('\') to forward slashes ('/') in the given path.

Parameters:

• path: Path to convert

std::string ConvertWindowsPathToBasicPath(const std::string& path)

Code sample:

Debug::Print(FileSystem::ConvertWindowsPathToBasicPath("C:\\my_folder\\"));
// Prints "C:/my_folder/"

ConvertBasicPathToWindowsPath

Converts all forward slashes ('/') to backslashes ('\') in the given path.

Parameters:

• path: Path to convert

std::string ConvertBasicPathToWindowsPath(const std::string& path)

Code sample:

Debug::Print(FileSystem::ConvertBasicPathToWindowsPath("C:/my_folder/"));
// Prints "C:\my_folder\"

File

Add this in your code:

#include <engine/file_system/file.h>

Description

Class to manage a file (Create, open, read, write).

Public methods

Open

Open the file.
Return true if the file is opened successfully.

Parameters:

• fileMode: The mode to open the file

bool Open(FileMode fileMode)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

if(file->Open(FileMode::ReadOnly))
{
}

CheckIfExist

Check if the file exists.
Return true if the file exists.

bool CheckIfExist()

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

if(file->CheckIfExist())
{
}

Close

Close file.

bool Close()

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

if(file->Open(FileMode::ReadOnly))
{
    // ...
    file->Close();
}

Write (String)

Write string data to the file.

Parameters:

• data: The data to write

void Write(const std::string& data)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("my_file.txt");

if(file->Open(FileMode::WriteCreateFile))
{
    // ...
    file->Write("Hello World!");
}

Write (Binary)

Write binary data to the file.

Parameters:

• data: The data to write
• size: The size of the data in byte

void Write(const unsigned char* data, size_t size)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("my_file.bin");


if(file->Open(FileMode::WriteCreateFile))
{
    uint32_t value = 44;
    // ...
    file->Write(&value, sizeof(uint32_t));
}

ReadAll

Read all the content of the file as a string.

std::string ReadAll()

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("my_file.txt");

if(file->Open(FileMode::ReadOnly))
{
    std::string content = file->ReadAll();
}

ReadAllBinary

Read all the content of the file as a binary (Need to free the pointer after).

Parameters:

• size: Output: The size of the binary in byte

unsigned char* ReadAllBinary(size_t& size)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("my_file.bin");

if(file->Open(FileMode::ReadOnly))
{
    size_t size = 0;
    unsigned char* content = file->ReadAllBinary(size);
    // ...
    free(content);
}

ReadBinary

Read a part of the content of the file as a binary (Need to free the pointer after).

Parameters:

• offset: Read offset in byte
• size: The size to read in byte

unsigned char* ReadBinary(size_t offset, size_t size)

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("my_file.bin");

if(file->Open(FileMode::ReadOnly))
{
    unsigned char* content = file->ReadBinary(4, 30);
    // ...
    free(content);
}

GetPath

Get file path.

const std::string& GetPath() const

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

std::string filePath = file->GetPath(); // = C:/my_folder/my_file.txt

GetFolderPath

Get file folder path.

std::string GetFolderPath() const

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

std::string filePath = file->GetFolderPath(); // = C:/my_folder/

GetFileName

Get file name.

const std::string& GetFileName() const

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

std::string filePath = file->GetFileName(); // = my_file

GetFileExtension

Get file extension (dot included).

const std::string& GetFileExtension() const

Code sample:

std::shared_ptr<File> file = FileSystem::MakeFile("C:/my_folder/my_file.txt");

std::string filePath = file->GetFileExtension(); // = .txt

FileMode Enum

Add this in your code:

#include <engine/file_system/file.h>

Description

Enum that list every modes to open a file.

Values

Directory

Add this in your code:

#include <engine/file_system/directory.h>

Description

Class to manage a directory (Get all files of a folder).

Variables

Public methods

GetAllFiles

Get all the files of the directory (can be very slow and not currently supported on PS3).

Parameters:

• recursive: If true, get all the files of the subdirectories

std::vector<std::shared_ptr<File>> GetAllFiles(bool recursive)

Code sample:

std::shared_ptr<Directory> directory = FileSystem::MakeDirectory("C:/my_folder/");

std::vector<std::shared_ptr<File>> files = directory->GetAllFiles(true);

CheckIfExist

Check if the directory exists.

bool CheckIfExist() const

Code sample:

std::shared_ptr<Directory> directory = FileSystem::MakeDirectory("C:/my_folder/");

bool directoryExists = directory->CheckIfExist();

GetPath

Get directory path.

const std::string& GetPath() const

Code sample:

std::shared_ptr<Directory> directory = FileSystem::MakeDirectory("C:/my_folder/");

const std::string& path = directory->GetPath(); // = "C:/my_folder/"

CopyFileResult Enum

Add this in your code:

#include <engine/file_system/file_system.h>

Description

Enum to list every different results of a file copy call.

Values

GameObject

Add this in your code:

#include <engine/game_elements/gameobject.h>

Description

A GameObject is a class that contains some properties and a list of components.
Includes functions to create GameObjects.

Global Methods

CreateGameObject

Create a GameObject with the default name.

std::shared_ptr<GameObject> CreateGameObject()

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject();
Debug::Print(myGameObject->GetName()); // Prints "GameObject"

CreateGameObject

Create a GameObject.

Parameters:

• name: Name of the GameObject

std::shared_ptr<GameObject> CreateGameObject(const std::string& name)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
Debug::Print(myGameObject->GetName()); // Prints "Player"

FindGameObjectByName

Find a GameObject with a name.

Parameters:

• name: Name of the GameObject

std::shared_ptr<GameObject> FindGameObjectByName(const std::string& name)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
std::shared_ptr<GameObject> result = FindGameObjectByName("Player");
if(myGameObject == result)
{
    Debug::Print("GameObject found!");
}

FindGameObjectsByName

Find GameObjects with a name.

Parameters:

• name: Name of the GameObject

std::vector<std::shared_ptr<GameObject>> FindGameObjectsByName(const std::string& name)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
std::shared_ptr<GameObject> myGameObject2 = CreateGameObject("Player");
std::vector<std::shared_ptr<GameObject>> results = FindGameObjectsByName("Player");
if(results.size() == 2)
{
    Debug::Print("Players found!");
}

FindGameObjectById

Find a GameObject with an id.

Parameters:

• id: Unique id of the GameObject

std::shared_ptr<GameObject> FindGameObjectById(const uint64_t id)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
std::shared_ptr<GameObject> result = FindGameObjectById(myGameObject->GetUniqueId());
if(myGameObject == result)
{
    Debug::Print("GameObject found!");
}

FindComponentById

Find a component with an id.

Parameters:

• id: Unique id of the component

std::shared_ptr<GameObject> FindComponentById(const uint64_t id)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
std::shared_ptr<AudioSource> myAudioSource = myGameObject->AddComponent<AudioSource>();
std::shared_ptr<Component> result = FindComponentById(myAudioSource->GetUniqueId());
if(myAudioSource == result)
{
    std::shared_ptr<AudioSource> resultAudioSource = std::dynamic_pointer_cast<AudioSource>(result);
    Debug::Print("Component found!");
}

Pubic Methods

AddChild

Add a child to the GameObject.

Parameters:

• gameObject: Child to add

void AddChild(const std::shared_ptr<GameObject>& gameObject)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("Player");
std::shared_ptr<GameObject> myChild = CreateGameObject("Gun");
myGameObject->AddChild(myChild);

SetParent

Set GameObject's parent.

Parameters:

• gameObject: New parent

void SetParent(const std::shared_ptr<GameObject>& gameObject)

Code sample:

std::shared_ptr<GameObject> player0 = CreateGameObject("Player");
std::shared_ptr<GameObject> player1 = CreateGameObject("Player");
std::shared_ptr<GameObject> parent = CreateGameObject("Players");
player0->SetParent(parent);
player1->SetParent(parent);

AddComponent

Add a component.
T is a component type

template <typename T>
AddComponent()

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<Light> lightComp = gameObject->AddComponent<Light>();
std::shared_ptr<AudioSource> audioSourceComp = gameObject->AddComponent<AudioSource>();

GetComponent

Get a component.
T is a component type

template <typename T>
GetComponent()

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<Light> lightComp = gameObject->AddComponent<Light>();
std::shared_ptr<Light> comp = gameObject->GetComponent<Light>();

GetComponents

Get components.
T is a component type

template <typename T>
GetComponents()

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<Light> lightComp = gameObject->AddComponent<Light>();
std::shared_ptr<Light> lightComp2 = gameObject->AddComponent<Light>();
std::vector<std::shared_ptr<Light>> lightsComp = gameObject->GetComponents<Light>();

IsActive

Get if the GameObject is marked as active.

bool IsActive() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
gameObject->SetActive(false);
bool isActive = gameObject->IsActive(); // = false

//....

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<GameObject> child = CreateGameObject();
child->SetParent(child);
gameObject->SetActive(false);
bool isActive = child->IsActive(); // = true

IsLocalActive

Get if the GameObject is active based on his parents active state.

bool IsLocalActive() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
gameObject->SetActive(false);
bool isActive = gameObject->IsLocalActive(); // = false

//....

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<GameObject> child = CreateGameObject();
child->SetParent(child);
gameObject->SetActive(false);
bool isActive = child->IsLocalActive(); // = false

SetActive

Set GameObject as active or not.

Parameters:

• active: Active value

void SetActive(const bool active)

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
gameObject->SetActive(false);
bool isActive = gameObject->IsActive(); // = false

GetChildrenCount

Get children count.

uint32_t GetChildrenCount() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<GameObject> child0 = CreateGameObject();
std::shared_ptr<GameObject> child1 = CreateGameObject();

gameObject->AddChild(child0);
gameObject->AddChild(child1);
uint32_t count = gameObject->GetChildrenCount(); // = 2

GetComponentCount

Get component count.

uint32_t GetComponentCount() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
gameObject->AddComponent<Light>();
gameObject->AddComponent<Light>();
gameObject->AddComponent<Light>();

uint32_t count = gameObject->GetComponentCount(); // = 3

GetTransform

Get transform.

const std::shared_ptr<Transform>& GetTransform() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
const std::shared_ptr<Transform>& transform = gameObject->GetTransform();

GetParent

Get parent GameObject.

const std::weak_ptr<GameObject>& GetParent() const

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
const std::weak_ptr<GameObject>& parent = gameObject->GetParent();

if(!parent.expired())
{
    Debug::Print("The gameobject does not have a parent");
}
else
{
    Debug::Print("The gameobject has a parent");
}

GetChild

Get a child by index.

Parameters:

• index: Child index

std::weak_ptr<GameObject> GetChild(int index)

Code sample:

std::shared_ptr<GameObject> gameObject = CreateGameObject();
std::shared_ptr<GameObject> child0 = CreateGameObject();
std::shared_ptr<GameObject> child1 = CreateGameObject();

gameObject->AddChild(child0);
gameObject->AddChild(child1);

std::weak_ptr<GameObject> weakChild1 = gameObject->GetChild(1);

std::shared_ptr<GameObject> sharedChild1 = weakChild1.lock();
if(sharedChild1)
{
    // Use child...
}

Inputs

• InputSystem: Class to read inputs (GamePads, Touch Screens, Keyboard, Mouse).
• Touch: This class stores information of finger on a touchscreen.
• KeyCode Enum: Enum that list every keys of a keyboard and buttons of a controller.

InputSystem

Add this in your code:

#include <engine/inputs/input_system.h>

Description

Class to read inputs (GamePads, Touch Screens, Keyboard, Mouse).

Macros

PLAYER_1 value: 0
PLAYER_2 value: 1
PLAYER_3 value: 2
PLAYER_4 value: 3
PLAYER_5 value: 4
PLAYER_6 value: 5
PLAYER_7 value: 6
PLAYER_8 value: 7

Static variables

Static methods

GetKeyDown

Return true if the key has just been pressed.

Parameters:

• keyCode: Key code to check
• controllerIndex: Controller index (0-7)

bool GetKeyDown(const KeyCode keyCode, const int controllerIndex = 0)

Code sample:

if (InputSystem::GetKeyDown(KeyCode::A))
{
    Debug::Print("A key pressed");
}

if (InputSystem::GetKeyDown(KeyCode::CIRCLE), PLAYER_1)
{
    Debug::Print("CIRCLE button pressed");
}

GetKey

Return true if the key is held.

Parameters:

• keyCode: Key code to check
• controllerIndex: Controller index (0-7)

bool GetKey(const KeyCode keyCode, const int controllerIndex = 0)

Code sample:

if (InputSystem::GetKey(KeyCode::A))
{
    Debug::Print("A key held");
}

if (InputSystem::GetKey(KeyCode::CIRCLE), PLAYER_1)
{
    Debug::Print("CIRCLE button held");
}

GetKeyUp

Return true if the key has just been released.

Parameters:

• keyCode: Key code to check
• controllerIndex: Controller index (0-7)

bool GetKeyUp(const KeyCode keyCode, const int controllerIndex = 0)

Code sample:

if (InputSystem::GetKeyUp(KeyCode::A))
{
    Debug::Print("A key released");
}

if (InputSystem::GetKeyUp(KeyCode::CIRCLE), PLAYER_1)
{
    Debug::Print("CIRCLE button released");
}

GetLeftJoystick

Get left joystick value, values between -1.0f and 1.0f.

Parameters:

• controllerIndex: Controller index (0-7)

Vector2 GetLeftJoystick(const int controllerIndex = 0)

Code sample:

Vector2 left = InputSystem::GetLeftJoystick(PLAYER_1);

GetRightJoystick

Get right joystick value, values between -1.0f and 1.0f.

Parameters:

• controllerIndex: Controller index (0-7)

Vector2 GetRightJoystick(const int controllerIndex = 0)

Code sample:

Vector2 right = InputSystem::GetRightJoystick(PLAYER_1);

GetLeftTrigger

Get left trigger value (R2), values between 0.0f and 1.0f.

Parameters:

• controllerIndex: Controller index (0-7)

 static float GetLeftTrigger(const int controllerIndex = 0)

Code sample:

float value = InputSystem::GetLeftTrigger(PLAYER_1);

GetRightTrigger

Get right trigger value (R2), values between 0.0f and 1.0f.

Parameters:

• controllerIndex: Controller index (0-7)

static float GetRightTrigger(const int controllerIndex = 0)

Code sample:

float value = InputSystem::GetRightTrigger(PLAYER_1);

GetTouchScreenCount

Get how many touch screens the device has.

int GetTouchScreenCount()

Code sample:

int touchScreenCount = InputSystem::GetTouchScreenCount(); // = 2 on PsVita

GetTouchCount

Get how many touch inputs the screen has.

Parameters:

• screenIndex: Screen index

int GetTouchCount(const int screenIndex)

Code sample:

int touchCount = InputSystem::GetTouchCount(0);

GetTouch

Get touch data.

Parameters:

• touchIndex: Touch index
• screenIndex: Screen index

Touch GetTouch(const int touchIndex, const int screenIndex)

Code sample:

int screenIndex = 0;
int touchCount = InputSystem::GetTouchCount(screenIndex);
if (touchCount >= 1)
{
    Touch touch = InputSystem::GetTouch(1, screenIndex);
}

HideMouse

Hide mouse.

void HideMouse()

Code sample:

InputSystem::HideMouse();

ShowMouse

Show mouse.

void ShowMouse()

Code sample:

InputSystem::ShowMouse();

Touch

Add this in your code:

#include <engine/inputs/input_system.h>

Description

This class stores information of finger on a touchscreen.

Variables

KeyCode Enum

Add this in your code:

#include <engine/inputs/input_system.h>

Description

Enum that list every keys of a keyboard and buttons of a controller.

Values

Math

• Quaternion: Class representing rotations in 3D space.
• Vector2Int: Contains integer 2D coordinates.
• Vector2: Contains 2D coordinates.
• Vector3: Contains 3D coordinates.
• Vector4: Contains 4D coordinates.

Quaternion

Add this in your code:

#include <engine/math/quaternion.h>

Description

Class representing rotations in 3D space.

Variables

Constructors

Quaternion

Quaternion()

Code sample:

Quaternion q = Quaternion();
// Same as q = Quaternion::Identity();

Quaternion (X,Y,Z,W)

Normalized.

Parameters:

• x: X value
• y: Y value
• z: Z value
• w: W value

Quaternion(float x, float y, float z, float w)

Code sample:

Quaternion q = Quaternion(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);

Quaternion (Vector4)

Normalized.

Parameters:

• vector: X, Y, Z, W values

Quaternion(const Vector4& vector)

Code sample:

Quaternion q = Quaternion(Vector4(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f));

Static methods

Identity

Returns a quaternion representing no rotation (identity quaternion).

Quaternion Identity()

Code sample:

Quaternion identity = Quaternion::Identity();

Euler

Create a quaternion from Euler angles (in degrees).

Parameters:

• x: X angle in degrees
• y: Y angle in degrees
• z: Z angle in degrees

Quaternion Euler(const float x, const float y, const float z)

Code sample:

Quaternion q = Quaternion::Euler(10, 20, 30);

AngleAxis

Make a quaternion from an angle and axis.

Parameters:

• angle: angle in degrees
• axis: Axis of the rotation

Quaternion AngleAxis(float angle, const Vector3& axis)

Code sample:

Quaternion q = Quaternion::AngleAxis(10, Vector3(1, 0, 0));

Inverse

Get the inverse of the quaternion.

Parameters:

• q: Quaternion to inverse

Quaternion Inverse(const Quaternion& q)

Code sample:

Quaternion q = Quaternion::Euler(10, 20, 30);
Quaternion inverseQ = Quaternion::Inverse(q);

Lerp

Linearly interpolates between quaternions.

Parameters:

• a: First quaternion
• b: Second quaternion
• t: Interpolation factor (0.0f to 1.0f)

Quaternion Lerp(const Quaternion& a, const Quaternion& b, const float t)

Code sample:

Quaternion a = Quaternion::Euler(10, 20, 30);
Quaternion b = Quaternion::Euler(90, 120, 10);
Quaternion mix = Quaternion::Lerp(a, b, 0.5f); // Mix of A and B
Quaternion lerp0 = Quaternion::Lerp(a, b, 0.0f); // Equals A
Quaternion lerp1 = Quaternion::Lerp(a, b, 1.0f); // Equals B

Dot

Get the dot product of two quaternions.

Parameters:

• q1: First quaternion
• q2: Second quaternion

float Dot(const Quaternion& q1, const Quaternion& q2)

Code sample:

Quaternion a = Quaternion::Euler(10, 20, 30);
Quaternion b = Quaternion::Euler(90, 120, 10);
Quaternion result = Quaternion::Dot(a, b);

Public methods

ToEuler

Converts the quaternion to Euler angles (in degrees).

Vector3 ToEuler() const

Code sample:

Quaternion a = Quaternion::Euler(10, 20, 30);
Vector3 euler = a.ToEuler();

Set

Set the quaternion values (Normalizes the quaternion).

Parameters:

• x: X value
• y: Y value
• z: Z value
• w: W value

void Set(const float x, const float y, const float z, const float w)

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f * 2, 0.3493627f * 2, -0.4916947f * 2, -0.4068529f * 2);
// a = (0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f)

Normalize

Normalize the quaternion.

void Normalize()

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
a.Normalize();

Normalized

Returns a normalized copy of the quaternion.

Quaternion Normalized() const

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
Quaternion normalizedA = a.Normalized();

GetForward

Get the forward direction vector of the quaternion.

Vector3 GetForward() const

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
Vector3 forward = a.GetForward();

GetUp

Get the up direction vector of the quaternion.

Vector3 GetUp() const

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
Vector3 up = a.GetUp();

GetRight

Get the right direction vector of the quaternion.

Vector3 GetRight() const

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
Vector3 right = a.GetRight();

ToString

Return a string representation of the quaternion like "{x:0.0 y:0.0 z:0.0 w:1.0}"

 std::string ToString() const

Code sample:

Quaternion a = Quaternion::Identity();
a.Set(0.6860413f, 0.3493627f, -0.4916947f, -0.4068529f);
Debug::Print(a.ToString());
// Prints "{x:0.6860413 y:0.3493627 z:0.4916947 w:0.4068529}"

Operators

Quaternion operator*(const Quaternion& left, const Quaternion& right)
Vector3 operator*(const Quaternion& left, const Vector3& right) // From vector3.h
bool operator==(const Quaternion& left, const Quaternion& right)
bool operator!=(const Quaternion& left, const Quaternion& right)

Vector2

Add this in your code:

#include <engine/math/vector2.h>

Description

Contains 2D coordinates.

Variables

Constructors

Vector2

Empty vector.

Vector2()

Code sample:

Vector2 vec = Vector2();
// X = Y = 0.0f

Vector2 (X,Y)

Parameters:

• x: X value
• y: Y value

Vector2(float x, float y)

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);

Vector2 (Single value)

Fill the vector with a single value.

Parameters:

• fillValue: Fill value

Vector2(float fillValue)

Code sample:

Vector2 vec = Vector2(1.0f);
// X = Y = 1.0f

Vector2 (Vector3)

Parameters:

• vect: 3D vector

Vector2(const Vector3& vect)

Code sample:

Vector3 vec3 = Vector3(1.0f, 2.0f, 3.0f);
Vector2 vec = Vector2(vec3);
// X = 1.0f
// Y = 2.0f

Vector2 (Vector2Int)

Parameters:

• vect: 2D integer vector

Vector2(const Vector2Int& vect)

Code sample:

Vector2Int vec2int = Vector2Int(1, 2);
Vector2 vec = Vector2(vec2int);
// X = 1.0f
// Y = 2.0f

Public methods

Max

Get the biggest value of the vector.

float Max()

Code sample:

Vector2 vec = Vector2(1.0f, 3.0f);
float maxValue = vec.Max(); // = 3.0f

Min

Get the smallest value of the vector.

float Min()

Code sample:

Vector2 vec = Vector2(1.0f, 3.0f);
float maxValue = vec.Min(); // = 1.0f

Normalized

Get a copy of this vector with a magnitude of 1 (Does not change vector values).

Vector2 Normalized() const

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);
Vector2 normalizedVec = vec.Normalized();

Normalize

Makes this vector have a magnitude of 1 (Changes vector values).

Vector2 Normalize()

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);
vec.Normalize();

Magnitude

Get the length of this vector.

float Magnitude() const

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);
float magnitude vec.Magnitude();

SquaredMagnitude

Get the squared length of this vector.

float SquaredMagnitude() const

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);
float squaredMagnitude vec.SquaredMagnitude();

HasInvalidValues

Return True is the vector has invalid values (NaN or Inf).

bool HasInvalidValues() const

Code sample:

Vector2 vec = Vector2(std::nanf(""), std::numeric_limits<float>::infinity()); // This will raise an assert in debug to avoid using nan or inf values
bool valid = vec->HasInvalidValues();

ToString

Return a string representation of the vector like "{x:1.0, y:2.0}"

bool ToString() const

Code sample:

Vector2 vec = Vector2(1.0f, 2.0f);
Debug::Print(vec->ToString()); // Prints "{x:1.0, y:2.0}"

Static methods

Lerp

Linearly interpolates between vectors.

Parameters:

• a: First vector
• b: Second vector
• t: Interpolation factor (0.0f to 1.0f)

Vector2 Lerp(const Vector2& a, const Vector2& b, const float t)

Code sample:

Vector2 a = Vector2(1.0f, 3.0f);
Vector2 b = Vector2(2.0f, 2.0f);
Vector2 mix = Vector2::Lerp(a, b, 0.5f); // Mix of A and B
Vector2 lerp0 = Vector2::Lerp(a, b, 0.0f); // Equals A
Vector2 lerp1 = Vector2::Lerp(a, b, 1.0f); // Equals B

Distance

Distance between two vectors.

Parameters:

• a: First vector
• b: Second vector

float Distance(const Vector2& a, const Vector2& b)

Code sample:

Vector2 a = Vector2Int(1.0f, 3.0f);
Vector2 b = Vector2Int(2.0f, 2.0f);
float distance = Vector2::Distance(a, b);

Operators

Vector2 operator+(const Vector2& left, const Vector2& right)
Vector2 operator-(const Vector2& left, const Vector2& right)
Vector2 operator-(const Vector2& vec)
Vector2 operator*(const float value, const Vector2& vec)
Vector2 operator*(const Vector2& left, const Vector2& right)
Vector2 operator*(const Vector2& vec, const float value)
Vector2 operator*(const Vector2& left, const Vector2Int& right);
Vector2 operator*(const Vector2Int& left, const Vector2& right);
Vector2 operator/(const float value, const Vector2& vec)
Vector2 operator/(const Vector2& vec, const float value)
Vector2 operator/(const Vector2& left, const Vector2& right)
Vector2& operator+=(Vector2& vec, const float value)
Vector2& operator-=(Vector2& vec, const float value)
Vector2& operator*=(Vector2& vec, const float value)
Vector2& operator/=(Vector2& vec, const float value)
Vector2& operator+=(Vector2& vec, const Vector2& vecRight)
Vector2& operator-=(Vector2& vec, const Vector2& vecRight)
Vector2& operator*=(Vector2& vec, const Vector2& vecRight)
Vector2& operator/=(Vector2& vec, const Vector2& vecRight)
bool operator==(const Vector2& left, const Vector2& right)
bool operator!=(const Vector2& left, const Vector2& right)

Vector2Int

Add this in your code:

#include <engine/math/vector2_int.h>

Description

Contains integer 2D coordinates.

Variables

Constructors

Vector2Int

Empty vector.

Vector2Int()

Code sample:

Vector2Int vec = Vector2Int();
// X = Y = 0

Vector2Int (X,Y)

Parameters:

• x: X value
• y: Y value

Vector2Int(int x, int y)

Code sample:

Vector2Int vec = Vector2Int(1, 2);

Vector2Int (Single value)

Fill the vector with a single value.

Parameters:

• fillValue: Fill value

Vector2Int(int fillValue)

Code sample:

Vector2Int vec = Vector2Int(1);
// X = Y = 1

Vector2Int (Vector3)

Parameters:

• vect: 3D vector

Vector2Int(const Vector3& vect)

Code sample:

Vector3 vec3 = Vector3(1.0f, 2.0f, 3.0f);
Vector2Int vec = Vector2Int(vec3);
// X = 1
// Y = 2

Vector2Int (Vector2)

Parameters:

• vect: 2D vector

Vector2Int(const Vector2& vect)

Code sample:

Vector2 vec2 = Vector2(1.0f, 2.0f);
Vector2Int vec = Vector2Int(vec2);
// X = 1
// Y = 2

Public methods

Max

Get the biggest value of the vector.

float Max()

Code sample:

Vector2Int vec = Vector2Int(1, 3);
float maxValue = vec.Max(); // = 3.0f

Min

Get the smallest value of the vector.

float Min()

Code sample:

Vector2Int vec = Vector2Int(1, 3);
float maxValue = vec.Min(); // = 1.0f

Normalized

Get a copy of this vector with a magnitude of 1 (Does not change vector values).

Vector2Int Normalized() const

Code sample:

Vector2Int vec = Vector2Int(1, 2);
Vector2Int normalizedVec = vec.Normalized();

Normalize

Makes this vector have a magnitude of 1 (Changes vector values).

Vector2Int Normalize()

Code sample:

Vector2Int vec = Vector2Int(1, 2);
vec.Normalize();

Magnitude

Get the length of this vector.

float Magnitude() const

Code sample:

Vector2Int vec = Vector2Int(1, 2);
float magnitude vec.Magnitude();

SquaredMagnitude

Get the squared length of this vector.

float SquaredMagnitude() const

Code sample:

Vector2Int vec = Vector2Int(1, 2);
float squaredMagnitude vec.SquaredMagnitude();

ToString

Return a string representation of the vector like "{x:1, y:2}"

bool ToString() const

Code sample:

Vector2Int vec = Vector2Int(1, 2);
Debug::Print(vec->ToString()); // Prints "{x:1, y:2}"

Static methods

Distance

Distance between two vectors.

Parameters:

• a: First vector
• b: Second vector

float Distance(const Vector2Int& a, const Vector2Int& b)

Code sample:

Vector2Int a = Vector2Int(1, 3);
Vector2Int b = Vector2Int(2, 2);
float distance = Vector2Int::Distance(a, b);

Operators

Vector2Int operator+(const Vector2Int& left, const Vector2Int& right)
Vector2Int operator-(const Vector2Int& left, const Vector2Int& right)
Vector2Int operator-(const Vector2Int& vec)
Vector2Int operator*(const float value, const Vector2Int& vec)
Vector2Int operator*(const Vector2Int& left, const Vector2Int& right)
Vector2Int operator*(const Vector2Int& vec, const float value)
Vector2Int operator/(const float value, const Vector2Int& vec)
Vector2Int operator/(const Vector2Int& vec, const float value)
Vector2Int operator/(const Vector2Int& left, const Vector2Int& right)
Vector2Int& operator+=(Vector2Int& vec, const float value)
Vector2Int& operator-=(Vector2Int& vec, const float value)
Vector2Int& operator*=(Vector2Int& vec, const float value)
Vector2Int& operator/=(Vector2Int& vec, const float value)
Vector2Int& operator+=(Vector2Int& vec, const Vector2Int& vecRight)
Vector2Int& operator-=(Vector2Int& vec, const Vector2Int& vecRight)
Vector2Int& operator*=(Vector2Int& vec, const Vector2Int& vecRight)
Vector2Int& operator/=(Vector2Int& vec, const Vector2Int& vecRight)
bool operator==(const Vector2Int& left, const Vector2Int& right)
bool operator!=(const Vector2Int& left, const Vector2Int& right)

Vector3

Add this in your code:

#include <engine/math/vector3.h>

Description

Contains 3D coordinates.

Variables

Constructors

Vector3

Empty vector.

Vector3()

Code sample:

Vector3 vec = Vector3();
// X = Y = Z = 0.0f

Vector3 (X,Y,Z)

Parameters:

• x: X value
• y: Y value
• z: Z value

Vector3(float x, float y, float z)

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);

Vector3 (Single value)

Fill the vector with a single value.

Parameters:

• fillValue: Fill value

Vector3(float fillValue)

Code sample:

Vector3 vec = Vector3(1.0f);
// X = Y = Z = 1.0f

Vector3 (Vector2)

Parameters:

• vect: 2D vector

Vector3(const Vector2& vect)

Code sample:

Vector2 vec2 = Vector2(1.0f, 2.0f);
Vector3 vec = Vector3(vec2);
// X = 1.0f
// Y = 2.0f
// Z = 0.0f

Vector3 (Vector2Int)

Parameters:

• vect: 2D integer vector

Vector3(const Vector2Int& vect)

Code sample:

Vector2Int vec2int = Vector2Int(1, 2);
Vector3 vec = Vector3(vec2int);
// X = 1.0f
// Y = 2.0f
// Z = 0.0f

Public methods

Max

Get the biggest value of the vector.

float Max()

Code sample:

Vector3 vec = Vector3(1.0f, 3.0f, 2.0f);
float maxValue = vec.Max(); // = 3.0f

Min

Get the smallest value of the vector.

float Min()

Code sample:

Vector3 vec = Vector3(1.0f, 3.0f, 2.0f);
float maxValue = vec.Min(); // = 1.0f

Normalized

Get a copy of this vector with a magnitude of 1 (Does not change vector values).

Vector3 Normalized() const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Vector3 normalizedVec = vec.Normalized();

Normalize

Makes this vector have a magnitude of 1 (Changes vector values).

Vector3 Normalize()

Code sample:

Vector3 vec = Vector3(1.0f, 1.0f, 3.0f);
vec.Normalize();

Magnitude

Get the length of this vector.

float Magnitude() const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
float magnitude vec.Magnitude();

SquaredMagnitude

Get the squared length of this vector.

float SquaredMagnitude() const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
float squaredMagnitude vec.SquaredMagnitude();

Dot

Get the dot product of this vector with another vector.

Parameters:

• v: Other vector

float Dot(const Vector3& v) const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Vector3 vec2 = Vector3(2.0f, 2.0f, 4.0f);
float dotResult vec.Dot(vec2);

Cross

Get the cross product of this vector with another vector.

Parameters:

• v: Other vector

Vector3 Cross(const Vector3& v) const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Vector3 vec2 = Vector3(2.0f, 2.0f, 4.0f);
Vector3 crossResult vec.Cross(vec2);

HasInvalidValues

Return True is the vector has invalid values (NaN or Inf).

bool HasInvalidValues() const

Code sample:

Vector3 vec = Vector3(std::nanf(""), std::numeric_limits<float>::infinity(), 3.0f); // This will raise an assert in debug to avoid using nan or inf values
bool valid = vec->HasInvalidValues();

ToString

Return a string representation of the vector like "{x:1.0, y:2.0, z:3.0}"

bool ToString() const

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Debug::Print(vec->ToString()); // Prints "{x:1.0, y:2.0, z:3.0}"

Static methods

Dot

Get the dot product of two vectors.

Parameters:

• a: First vector
• b: Sedond vector

float Dot(const Vector3& a, const Vector3& b)

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Vector3 vec2 = Vector3(2.0f, 2.0f, 4.0f);
float dotResult Vector3::Dot(vec, vec2);

Cross

Get the cross product of two vectors.

Parameters:

• a: First vector
• b: Sedond vector

Vector3 Cross(const Vector3& a, const Vector3& b)

Code sample:

Vector3 vec = Vector3(1.0f, 2.0f, 3.0f);
Vector3 vec2 = Vector3(2.0f, 2.0f, 4.0f);
Vector3 crossResult Vector3::Cross(vec, vec2);

Lerp

Linearly interpolates between vectors.

Parameters:

• a: First vector
• b: Second vector
• t: Interpolation factor (0.0f to 1.0f)

Vector3 Lerp(const Vector3& a, const Vector3& b, const float t)

Code sample:

Vector3 a = Vector3(1.0f, 2.0f, 3.0f);
Vector3 b = Vector3(2.0f, 2.0f, 4.0f);
Vector3 mix = Vector3::Lerp(a, b, 0.5f); // Mix of A and B
Vector3 lerp0 = Vector3::Lerp(a, b, 0.0f); // Equals A
Vector3 lerp1 = Vector3::Lerp(a, b, 1.0f); // Equals B

Distance

Distance between two vectors.

Parameters:

• a: First vector
• b: Second vector

float Distance(const Vector3& a, const Vector3& b)

Code sample:

Vector3 a = Vector3(1.0f, 2.0f, 3.0f);
Vector3 b = Vector3(2.0f, 2.0f, 4.0f);
float distance = Vector3::Distance(a, b);

LookAt

Get the look rotation in degrees between two vectors.

Parameters:

• from: First vector
• to: Target position

Vector3 LookAt(const Vector3& from, const Vector3& to)

Code sample:

Vector3 from = Vector3(1.0f, 2.0f, 3.0f);
Vector3 to = Vector3(2.0f, 2.0f, 4.0f);
Vector3 rotation = Vector3::LookAt(a, b);

Operators

Vector3 operator+(const Vector3& left, const Vector3& right)
Vector3 operator-(const Vector3& left, const Vector3& right)
Vector3 operator-(const Vector3& vec)
Vector3 operator*(const float value, const Vector3& vec)
Vector3 operator*(const Vector3& left, const Vector3& right)
Vector3 operator*(const Vector3& vec, const float value)
Vector3 operator*(const Quaternion& left, const Vector3& right)
Vector3 operator/(const float value, const Vector3& vec)
Vector3 operator/(const Vector3& vec, const float value)
Vector3 operator/(const Vector3& left, const Vector3& right)
Vector3& operator+=(Vector3& vec, const float value)
Vector3& operator-=(Vector3& vec, const float value)
Vector3& operator*=(Vector3& vec, const float value)
Vector3& operator/=(Vector3& vec, const float value)
Vector3& operator+=(Vector3& vec, const Vector3& vecRight)
Vector3& operator-=(Vector3& vec, const Vector3& vecRight)
Vector3& operator*=(Vector3& vec, const Vector3& vecRight)
Vector3& operator/=(Vector3& vec, const Vector3& vecRight)
bool operator==(const Vector3& left, const Vector3& right)
bool operator!=(const Vector3& left, const Vector3& right)

Vector4

Add this in your code:

#include <engine/math/vector4.h>

Description

Contains 4D coordinates.

Variables

Constructors

Vector4

Empty vector.

Vector4()

Code sample:

Vector4 vec = Vector4();
// X = Y = Z = W = 0.0f

Vector4 (X,Y,Z,W)

Parameters:

• x: X value
• y: Y value
• z: Z value
• w: W value

Vector4(float x, float y, float z,  float w)

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);

Vector4 (Single value)

Fill the vector with a single value.

Parameters:

• fillValue: Fill value

Vector4(float fillValue)

Code sample:

Vector4 vec = Vector4(1.0f);
// X = Y = Z = W = 1.0f

Vector4 (Vector3)

Parameters:

• vect: 3D vector

Vector4(const Vector3& vect)

Code sample:

Vector3 vec3 = Vector3(1.0f, 2.0f, 3.0f);
Vector4 vec = Vector4(vec3);
// X = 1.0f
// Y = 2.0f
// Z = 3.0f
// W = 0.0f

Vector4 (Vector2)

Parameters:

• vect: 2D vector

Vector4(const Vector2& vect)

Code sample:

Vector2 vec2 = Vector2(1.0f, 2.0f);
Vector4 vec = Vector4(vec2);
// X = 1.0f
// Y = 2.0f
// Z = 0.0f
// W = 0.0f

Vector4 (Vector2Int)

Parameters:

• vect: 2D integer vector

Vector4(const Vector2Int& vect)

Code sample:

Vector2Int vec2int = Vector2Int(1, 2);
Vector4 vec = Vector4(vec2int);
// X = 1.0f
// Y = 2.0f
// Z = 0.0f
// W = 0.0f

Public methods

Max

Get the biggest value of the vector.

float Max()

Code sample:

Vector4 vec = Vector4(1.0f, 3.0f, 4.0f, 2.0f);
float maxValue = vec.Max(); // = 4.0f

Min

Get the smallest value of the vector.

float Min()

Code sample:

Vector4 vec = Vector4(1.0f, 3.0f, 4.0f, 2.0f);
float maxValue = vec.Min(); // = 1.0f

Normalized

Get a copy of this vector with a magnitude of 1 (Does not change vector values).

Vector4 Normalized() const

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);
Vector4 normalizedVec = vec.Normalized();

Normalize

Makes this vector have a magnitude of 1 (Changes vector values).

Vector4 Normalize()

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);
vec.Normalize();

Magnitude

Get the length of this vector.

float Magnitude() const

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);
float magnitude vec.Magnitude();

SquaredMagnitude

Get the squared length of this vector.

float SquaredMagnitude() const

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);
float squaredMagnitude vec.SquaredMagnitude();

HasInvalidValues

Return True is the vector has invalid values (NaN or Inf).

bool HasInvalidValues() const

Code sample:

Vector4 vec = Vector4(std::nanf(""), std::numeric_limits<float>::infinity(), 3.0f, 4.0f); // This will raise an assert in debug to avoid using nan or inf values
bool valid = vec->HasInvalidValues();

ToString

Return a string representation of the vector like "{x:1.0, y:2.0, z:3.0, w:4.0}"

bool ToString() const

Code sample:

Vector4 vec = Vector4(1.0f, 2.0f, 3.0f, 4.0f);
Debug::Print(vec->ToString()); // Prints "{x:1.0, y:2.0, z:3.0, w:4.0}"

Static methods

Lerp

Linearly interpolates between vectors.

Parameters:

• a: First vector
• b: Second vector
• t: Interpolation factor (0.0f to 1.0f)

Vector4 Lerp(const Vector4& a, const Vector4& b, const float t)

Code sample:

Vector4 a = Vector4(1.0f, 3.0f, 2.0f, 6.0f);
Vector4 b = Vector4(2.0f, 2.0f, 4.0f, 1.0f);
Vector4 mix = Vector4::Lerp(a, b, 0.5f); // Mix of A and B
Vector4 lerp0 = Vector4::Lerp(a, b, 0.0f); // Equals A
Vector4 lerp1 = Vector4::Lerp(a, b, 1.0f); // Equals B

Operators

Vector4 operator+(const Vector4& left, const Vector4& right)
Vector4 operator-(const Vector4& left, const Vector4& right)
Vector4 operator-(const Vector4& vec)
Vector4 operator*(const float value, const Vector4& vec)
Vector4 operator*(const Vector4& left, const Vector4& right)
Vector4 operator*(const Vector4& vec, const float value)
Vector4 operator/(const float value, const Vector4& vec)
Vector4 operator/(const Vector4& vec, const float value)
Vector4 operator/(const Vector4& left, const Vector4& right)
Vector4& operator+=(Vector4& vec, const float value)
Vector4& operator-=(Vector4& vec, const float value)
Vector4& operator*=(Vector4& vec, const float value)
Vector4& operator/=(Vector4& vec, const float value)
Vector4& operator+=(Vector4& vec, const Vector4& vecRight)
Vector4& operator-=(Vector4& vec, const Vector4& vecRight)
Vector4& operator*=(Vector4& vec, const Vector4& vecRight)
Vector4& operator/=(Vector4& vec, const Vector4& vecRight)
bool operator==(const Vector4& left, const Vector4& right)
bool operator!=(const Vector4& left, const Vector4& right)

Network

• NetworkManager: Class to create sockets and to manage networking settings.
• Socket: Class to send and received data to/from a server.

NetworkManager

Add this in your code:

#include <engine/network/network.h>

Description

Class to create sockets and to manage networking settings.

Static methods

CreateSocket

Create a socket.
Returns nullptr if the socket creation has failed.

Parameters:

• address: IP address
• port: Port number

std::shared_ptr<Socket> CreateSocket(const std::string& address, int port)

Code sample:

// Fake ip
std::shared_ptr<Socket> socket = NetworkManager::CreateSocket("192.168.1.10", 6004);
// Check if the socket has been created
if(socket)
{
    // ...
}

ShowPSPNetworkSetupMenu

Show the network setup menu for the PSP.
This function will only work on the PSP platform.

To make networking working on PSP, the user has to manually connect to a wifi.
For this, a menu of the PSP OS ask to the user to setup a network connection.

void ShowPSPNetworkSetupMenu()

Code sample:

NetworkManager::ShowPSPNetworkSetupMenu();

Socket

Add this in your code:

#include <engine/network/network.h>

Description

Class to send and received data to/from a server.
Created with the NetworkManager class.
The socket will be closed when the object is destroyed.

Public methods

SendData (string)

Send data as a string to the server.

Parameters:

• text: Text to send

void SendData(const std::string& text)

Code sample:

// Fake ip
std::shared_ptr<Socket> socket = NetworkManager::CreateSocket("192.168.1.10", 6004);
if(socket)
{
    socket->SendData("Hello World!");
}

SendData (binary)

Send binary data to the server.

Parameters:

• data: Pointer to the data to send
• size: Size on byte to send

void SendData(const char* data, int size)

Code sample:

// Fake ip
std::shared_ptr<Socket> socket = NetworkManager::CreateSocket("192.168.1.10", 6004);

struct MyStruct
{
    int value0 = 1;
    int value1 = 2;
};

MyStruct myStruct = MyStruct();
if(socket)
{
    socket->SendData(reinterpret_cast<char*>(&myStruct), sizeof(MyStruct));
}

Close

Send data as a string to the server.

void Close()

Code sample:

// Fake ip
std::shared_ptr<Socket> socket = NetworkManager::CreateSocket("192.168.1.10", 6004);
if(socket)
{
    socket->SendData("Hello World!");
    socket->Close();
}

GetIncommingData

Return recieved data since the last GetIncommingData call.

std::string GetIncommingData()

Code sample:

// Fake ip
std::shared_ptr<Socket> socket = NetworkManager::CreateSocket("192.168.1.10", 6004);
if(socket)
{
    std::string data = socket->GetIncommingData();
}

Noise

Add this in your code:

#include <engine/noise/noise.h>

Description

Class to generate 1D, 2D, 3D and 4D Perlin noise.

Static methods

Noise1D

Get 1D Perlin noise.

Parameters:

• x: The x coordinate

float Noise1D(float x)

Code sample:

float value = Noise::Noise1D(0.5f);

Noise2D

Get 2D Perlin noise.

Parameters:

• x: The x coordinate
• y: The y coordinate

float Noise2D(float x, float y)

Code sample:

float value = Noise::Noise2D(0.5f, 0.1f);

Noise3D

Get 3D Perlin noise.

Parameters:

• x: The x coordinate
• y: The y coordinate
• z: The z coordinate

float Noise3D(float x, float y, float z)

Code sample:

float value = Noise::Noise3D(0.5f, 0.1f, 0.3f);

Noise4D

Get 4D Perlin noise.

Parameters:

• x: The x coordinate
• y: The y coordinate
• z: The z coordinate
• w: The w coordinate

float Noise4D(float x, float y, float z, float w)

Code sample:

float value = Noise::Noise4D(0.5f, 0.1f, 0.3f, 0.8f);

Object management

Add this in your code:

#include <engine/tools/gameplay_utility.h>

Description

Class to manage Objects (GameObject and Components).
You can Instantiate, Check and Destroy Objects.

Methods

IsValid

Check if a GameObject or a Component is valid to use.
If an object is waiting to be destroyed, the object is not valid anymore.
Only takes Component, GameObject and Transform.

Parameters:

• pointer: Pointer to the object to check

template <typename T>
bool IsValid(const std::shared_ptr<T>& pointer)
bool IsValid(const std::weak_ptr<T>& pointer)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("MyGO");

if(IsValid(myGameObject))
{
    // This object is valid
}

Destroy(myGameObject);

if(IsValid(myGameObject))
{
    // This object is not valid anymore, this if won't be executed
}

Instantiate (GameObject)

Create a new GameObject from another.
(Not very recommended, can be buggy, use prefabs instead).

Parameters:

• gameObject: GameObject to duplicate

std::shared_ptr<GameObject> Instantiate(const std::shared_ptr<GameObject>& gameObject)

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("MyGO");

std::shared_ptr<GameObject> myGameObject2 = Instantiate(myGameObject);

Instantiate (Prefab)

Create a new GameObject from a prefab.

Parameters:

• prefab: Prefab to instanciate

std::shared_ptr<GameObject> Instantiate(const std::shared_ptr<Prefab>& prefab)

Code sample:

std::shared_ptr<GameObject> myGameObject = Instantiate(myPrefab);

Destroy

Destroy a GameObject or component.

Parameters:

• component/gameObject: component or GameObject to destroy

void Destroy(const std::shared_ptr<Component>& component)
void Destroy(const std::shared_ptr<GameObject>& gameObject);
void Destroy(const std::weak_ptr<Component>& component)
void Destroy(const std::weak_ptr<GameObject>& gameObject);

Code sample:

std::shared_ptr<GameObject> myGameObject = CreateGameObject("MyGO");

Destroy(myGameObject);

Physics

• Collider: Parent class of collider components (BoxCollider, SphereCollider...).
• CollisionEvent: This class stores information of a collision between two colliders.
• Raycast: Class to check collisions with a ray.

Collider

Add this in your code:

#include <engine/physics/collider.h>

Description

Parent class of collider components (BoxCollider, SphereCollider...).

Function of Collider can be used on every colllider component.

Public methods

SetIsTrigger

Set if the collider is a trigger or not.
A trigger collider will not collide with other colliders, but will still generate collision events.

Parameters:

• isTrigger: New isTrigger value

void SetIsTrigger(bool isTrigger)

Code sample:

std::shared_ptr<BoxColldier> boxCollider = GetGameObject()->AddComponent<BoxColldier>();
boxCollider->SetIsTrigger(true);

IsTrigger

Check if the collider is a trigger or not.

bool IsTrigger() const

Code sample:

std::shared_ptr<BoxColldier> boxCollider = GetGameObject()->AddComponent<BoxColldier>();
boxCollider->SetIsTrigger(true);
bool isTrigger = boxCollider->IsTrigger(); // = true

SetGenerateCollisionEvents

Set if the collider should generate collision events or not.

Parameters:

• generateCollisionEvents: New generateCollisionEvents value

void SetGenerateCollisionEvents(bool generateCollisionEvents)

Code sample:

std::shared_ptr<BoxColldier> boxCollider = GetGameObject()->AddComponent<BoxColldier>();
boxCollider->SetGenerateCollisionEvents(true);

GetGenerateCollisionEvents

Check if the collider should generate collision events or not.

bool GetGenerateCollisionEvents() const

Code sample:

std::shared_ptr<BoxColldier> boxCollider = GetGameObject()->AddComponent<BoxColldier>();
boxCollider->SetGenerateCollisionEvents(true);
bool generateCollisionEvents = boxCollider->GetGenerateCollisionEvents(); // = true

CollisionEvent

Add this in your code:

#include <engine/physics/collision_event.h>

Description

This class stores information of a collision between two colliders.

Variables

Raycast

Add this in your code:

#include <engine/physics/raycast.h>

Description

Class to check collisions with a ray.

Public methods

Check

Check if a ray hits a collider.
Return true if the raycast has hit a collider.

Parameters:

• startPosition: The start position of the ray
• direction: The direction of the ray
• maxDistance: The max distance of the ray
• raycastHit: The raycastHit struct that will be filled with the hit information

bool Check(
    const Vector3& startPosition,
    const Vector3& direction,
    const float maxDistance,
    RaycastHit& raycastHit)

Code sample:

// Check under the player
RaycastHit hit;
bool hasHit = Raycast::Check(
    raycastPointTransform->GetPosition(),
    Vector3(0, -1, 0),
    0.1f,
    hit);

if (hasHit && hit.hitCollider.lock())
{
    // There is something under the player
}

RaycastHit

Add this in your code:

#include <engine/physics/raycast.h>

Description

This class stores information of a racyast hit.

Variables

Profiler

Add this in your code:

#include <engine/debug/profiler.h>

Description

Class used to use the profiler in game builds.

Public methods

GetReflectiveData

Save profiling data to a file at the end of the frame.
Return true if the data can be saved, false if the profiler is disabled.

Parameters:

• name: Name of the profiling data file without the extension, if empty, the name will be "profiler" + the date and time

static bool SaveProfilingData(const std::string& name = "")

Code sample:

Profiler::SaveProfilingData(); // Will be saved in "profiler 14h 37m 42s 9d 7m 2025y.xenp"
Profiler::SaveProfilingData("scene_0"); // Will be saved in "scene_0.xenp"

Reflective

Add this in your code:

#include <engine/reflection/reflection.h>

Description

Class to inherit if you want to access child's variables to fill variables from json or save them to json.
It's used to see variables of a class in the Inspector.

GameObject, Transform and Component implement this class.

The GetReflectiveData function is very important and is mandatory to implement in every class that implement Reflective.

Typedef

ReflectiveData = std::vector<ReflectiveEntry>

Macros

Macros have been added to simplify the usage of the reflection system.

BEGIN_REFLECTION(); is used at the beginning of the GetReflectiveData function to prepare the reflection.

END_REFLECTION(); is used at the end of the GetReflectiveData function to end the reflection.

ADD_VARIABLE(variable); is used to make a variable visible for the reflection system.

ADD_VARIABLE_CUSTOM(variable, name); is used to make a variable visible for the reflection system with a custom name.

Public methods

GetReflectiveData

Get all child class variables references (Needs to be implemented).

virtual ReflectiveData GetReflectiveData() = 0

Code sample:

class MyComponent : public Reflective
{
public:
    ReflectiveData GetReflectiveData() override;

public:
    float publicVariable = 0;
    float publicVariable2 = 0;
private:
    float m_privateVariable = 1;
};

ReflectiveData MyComponent::GetReflectiveData()
{
	BEGIN_REFLECTION();
	ADD_VARIABLE(publicVariable);
	ADD_VARIABLE(publicVariable2).SetIsSlider(true).SetMaxSliderValue(100.0).SetMinSliderValue(2.0);
	ADD_VARIABLE(m_privateVariable).SetIsPublic(false); // false is used to hide the variable from the Inspector view
	END_REFLECTION();
}

OnReflectionUpdated

Called when one or more variables have been updated by the inspector or by the scene manager.

virtual void OnReflectionUpdated()

Code sample:

class MyComponent : public Reflective
{
public:
    ReflectiveData GetReflectiveData() override;
    void OnReflectionUpdated() override;

public:
    float publicVariable = 0;
private:
    float m_privateVariable = 1;
};

ReflectiveData MyComponent::GetReflectiveData()
{
    //...
}

void MyComponent::OnReflectionUpdated()
{
    Debug::Print("One or more variables have been updated!");
}

SceneManager

Add this in your code:

#include <engine/scene_manager/scene_manager.h>

Description

Class to load scenes.

Static methods

LoadScene

Load a scene.

Parameters:

• scene: Scene to load

void LoadScene(const std::shared_ptr<Scene>& scene)

Code sample:

std::shared_ptr<Scene> sceneToLoad; // Filled variable

SceneManager::LoadScene(sceneToLoad);

ReloadScene

Reload the current scene.

void ReloadScene()

Code sample:

SceneManager::ReloadScene();

GetOpenedScene

Get opened scene.

const std::shared_ptr<Scene>& GetOpenedScene()

Code sample:

std::shared_ptr<Scene> currentScene = SceneManager::GetOpenedScene();

Screen

Add this in your code:

#include <engine/ui/screen.h>

Description

Class to get information and to interact with the screen.

Static methods

GetWidth

Get the width of the screen in pixels.

int GetWidth()

Code sample:

int width = Screen::GetWidth();

GetHeight

Get the height of the screen in pixels.

int GetHeight()

Code sample:

int height = Screen::GetHeight();

SetFullScreen

Set if the window should be in fullscreen mode.
Only for Windows and Linux, no effect on other platforms.
Does not affect the editor window.

Parameters:

• useFullScreenMode: True to enable fullscreen, false to disable

void SetFullScreen(bool useFullScreenMode)

Code sample:

Screen::SetFullScreen(true);

SetVSync

Set if the window should use VSync (May cause graphical glitch on PSP).

Parameters:

• useVSync: True to enable VSync, false to disable

void SetVSync(bool useVSync)

Code sample:

Screen::SetVSync(true);

IsVSyncEnabled

Get if VSync is enabled.

bool IsVSyncEnabled()

Code sample:

Screen::SetVSync(true);

bool isEnabled = Screen::IsVSyncEnabled(); // Returns true

MakeScreenshot

Make a screenshot of the game (.png).
(Note: on PSP/PsVita, plugins overlays are also captured). On RPCS3 emulator, you have to enable the "Write Color Buffers" gpu option. You may have to use OpenGL instead of vulkan if there are artifacts. On PPSSPP emulator, you gave to enable software rendering.

Parameters:

• fileName: The name of the file to save the screenshot (without the extension)

void MakeScreenshot(const std::string& fileName)

Code sample:

Screen::MakeScreenshot("my_screenshot");

Time

Add this in your code:

#include <engine/time/time.h>

Description

Class to get time information (Delta time, elapsed time).

Values are updated every frame.

Static methods

GetTime

Get total scaled elapsed time.
Start at 0 when the game starts.

float GetTime()

Code sample:

float timeA = Time::GetTime(); // = 0.0f
Time::SetTimeScale(0.5f);

// 2 seconds later...

float timeB = Time::GetTime(); // = 1.0f

GetUnscaledTime

Get total unscaled elapsed time (not affected by time scale).
Start at 0 when the game starts.

float GetUnscaledTime()

Code sample:

float timeA = Time::GetUnscaledTime(); // = 0.0f
Time::SetTimeScale(0.5f);

// 2 seconds later...

float timeB = Time::GetUnscaledTime(); // = 2.0f

GetDeltaTime

Get scaled delta time, which is the time elapsed since the last frame * time scale.

float GetDeltaTime()

Code sample:

// Game running at 60 fps with a time scale of 1.0f
float timeA = Time::GetDeltaTime(); // = 0.0166f

// Game running at 60 fps with a time scale of 0.5f
float timeA = Time::GetDeltaTime(); // = 0.0083f

GetUnscaledDeltaTime

Get unscaled delta time which is the time elapsed since the last frame (not affected by time scale).

float GetUnscaledDeltaTime()

Code sample:

// Game running at 60 fps with a time scale of 1.0f
float timeA = Time::GetUnscaledDeltaTime(); // = 0.0166f

// Game running at 60 fps with a time scale of 0.5f
float timeA = Time::GetUnscaledDeltaTime(); // = 0.0166f

GetTimeScale

Get time scale (Speed of the game).

float GetTimeScale()

Code sample:

Time::SetTimeScale(0.4f);
float timeScale = Time::GetTimeScale(); // = 0.4f

SetTimeScale

Get time scale (Speed of the game).

Parameters:

• timeScale: Time scale (minium 0)

void SetTimeScale(float timeScale)

Code sample:

Time::SetTimeScale(0.4f);

Transform

Add this in your code:

#include <engine/game_elements/transform.h>

Description

Class representing a 3D transformation (position, rotation, scale) of a GameObject.

Public Methods

GetPosition

Get world position.

const Vector3& GetPosition() const

SetPosition

Set world position.

Parameters:

• position: New world position

void SetPosition(const Vector3& position)

GetLocalPosition

Get local position.

const Vector3& GetLocalPosition() const

SetLocalPosition

Set local position.

Parameters:

• position: New world position

void SetLocalPosition(const Vector3& position)

GetEulerAngles

Get rotation (in degree).

const Vector3& GetEulerAngles() const

GetLocalEulerAngles

Get local rotation (in degree).

const Vector3& GetLocalEulerAngles() const

GetRotation

Get rotation.

const Quaternion& GetRotation() const

GetLocalRotation

Get local rotation.

const Quaternion& GetLocalRotation() const

SetEulerAngles

Set world rotation in degree.

Parameters:

• rotation: New world rotation

void SetEulerAngles(const Vector3& rotation)

SetLocalEulerAngles

Set local rotation in degree.

Parameters:

• rotation: New local rotation

void SetLocalEulerAngles(const Vector3& rotation)

SetRotation

Set world rotation.

Parameters:

• rotation: New world rotation

void SetRotation(const Quaternion& rotation)

SetLocalRotation

Set local rotation.

Parameters:

• rotation: New local rotation

void SetLocalRotation(const Quaternion& rotation)

GetScale

Get scale.

const Vector3& GetScale() const

GetLocalScale

Get local scale.

const Vector3& GetLocalScale() const

SetLocalScale

Set local scale.

Parameters:

• scale: New local scale

void SetLocalScale(const Vector3& scale)

GetForward

Get forward direction.

Vector3 GetForward() const

GetBackward

Get backward direction.

Vector3 GetBackward() const

GetLeft

Get left direction.

Vector3 GetLeft() const

GetRight

Get right direction.

Vector3 GetRight() const

GetUp

Get up direction.

Vector3 GetUp() const

GetDown

Get down direction.

Vector3 GetDown() const

GetTransformationMatrix

Set transformation matrix.

const glm::mat4& GetTransformationMatrix() const

SetTransformationMatrix

Set transformation matrix.

Parameters:

• matrix: New matrix

void SetTransformationMatrix(const glm::mat4& matrix)

GetGameObject

Get GameObject.

std::shared_ptr<GameObject> GetGameObject() const

GetOnTransformUpdated

Get the event that is called when the transform is updated (new position, or new rotation or new scale).

Event<>& GetOnTransformUpdated()

GetOnTransformScaled

Get the event that is called when the transform is scaled.

Event<>& GetOnTransformScaled()

UI Rendering

• HorizontalAlignment: Enum to horizontally align text with text rendering components.
• VerticalAlignment: Enum to vertically align text with text rendering components.

HorizontalAlignment Enum

Add this in your code:

#include <engine/graphics/ui/text_alignments.h>

Description

Enum to horizontally align text with text rendering components.

Values

VerticalAlignment Enum

Add this in your code:

#include <engine/graphics/ui/text_alignments.h>

Description

Enum to vertically align text with text rendering components.

Values

Utils

• EndianUtils: Utility class for endian conversion.

EndianUtils

Add this in your code:

#include <engine/tools/endian_utils.h>
